Calibrated (L1b) frame metrics from INCREMENTAL v7.5 processing The plots below show scan-collapsed L1b-frame metrics (either scan-medianed or scan-averaged, as indicated). These serve to monitor pixel calibration performance in a relative sense. For the first three plots, only framesets satisfying the following critiera were used: |glat| > 20deg, saadist > 5deg, and moondist > 30deg. An orthogonal trending analysis using L0-frames averaged over 3 to 4 day windows can be found here. The latter are primarily for detector trending and creating calibrations. * median of robust spatial frame-pixel RMS per scan as a function of MJD: medrms_vs_mjdL1b_v7.5.pdf red lines are "optimal" local nonparametric regression fits. * median number of low+high sky-offset pixels with |value|>20 DN over scan: ** NOTE: these are eventually subtracted when making final L1b products. These trends primarily serve as an indicator of how far/close the input static darks were to the true state of the detector. I.e., the dynamic sky-offset calibrations will need to catch/correct "fewer" low/high dark pixels if the input darks were perfect. This can be seen soon after a calibration update (the discontinuous jumps). medskyLoHi_vs_mjd_v7.5.pdf * median of ratio: "robust frame-pixel RMS/mode{error-model pixel uncertainty}" over all frames per scan: medchi_vs_mjdL1b_v7.5.pdf * median number of hi-spike (glitched) pixels per frame over scan: medspikeHi_vs_mjdL1b_v7.5.pdf * maximum number of hi-spike (glitched) pixels over all frames in scan: maxspikeHi_vs_mjdL1b_v7.5.pdf * Residual low spatial-frequency responsivity maps created by stack-averaging ~200 scan-collapsed X,Y binned "NEOWISER - ALLWISE" delta magnitude tables generated in operations per scan. The delta-mag estimates in these tables are first converted to flux-space, renormalized to have a spatial-average of unity, then stacked using trimmed averaging and smoothed using a constant Gaussian kernel to remove the binning pattern. These products illustrate the performance of the pixel calibrations (flats, darks, sky-offsets etc.) and hence the quality of the L1b frame products from which sources are extracted. The min-max stretch on all jpegs is 0.995 --> 1.005, i.e., 1 +/- 0.5% Relative "NEOWISE-ALLWISE" residual maps
Following discontinued for regular trending on 01/13/15 (not much use) * number of residual hot (> 20 DN) pixels from median-stack of filtered regularized L1b frames per scan: stackhot_vs_mjd_v7.5.pdf frame filtering: moondist > 23deg; |b| > 10deg; saadist > 2deg. * number of residual noisy (rms > 25 DN) pixels from trimmed stack-standard-deviation of filtered regularized L1b frames per scan: stackrms_vs_mjd_v7.5.pdf frame filtering: moondist > 23deg; |b| > 10deg; saadist > 2deg.

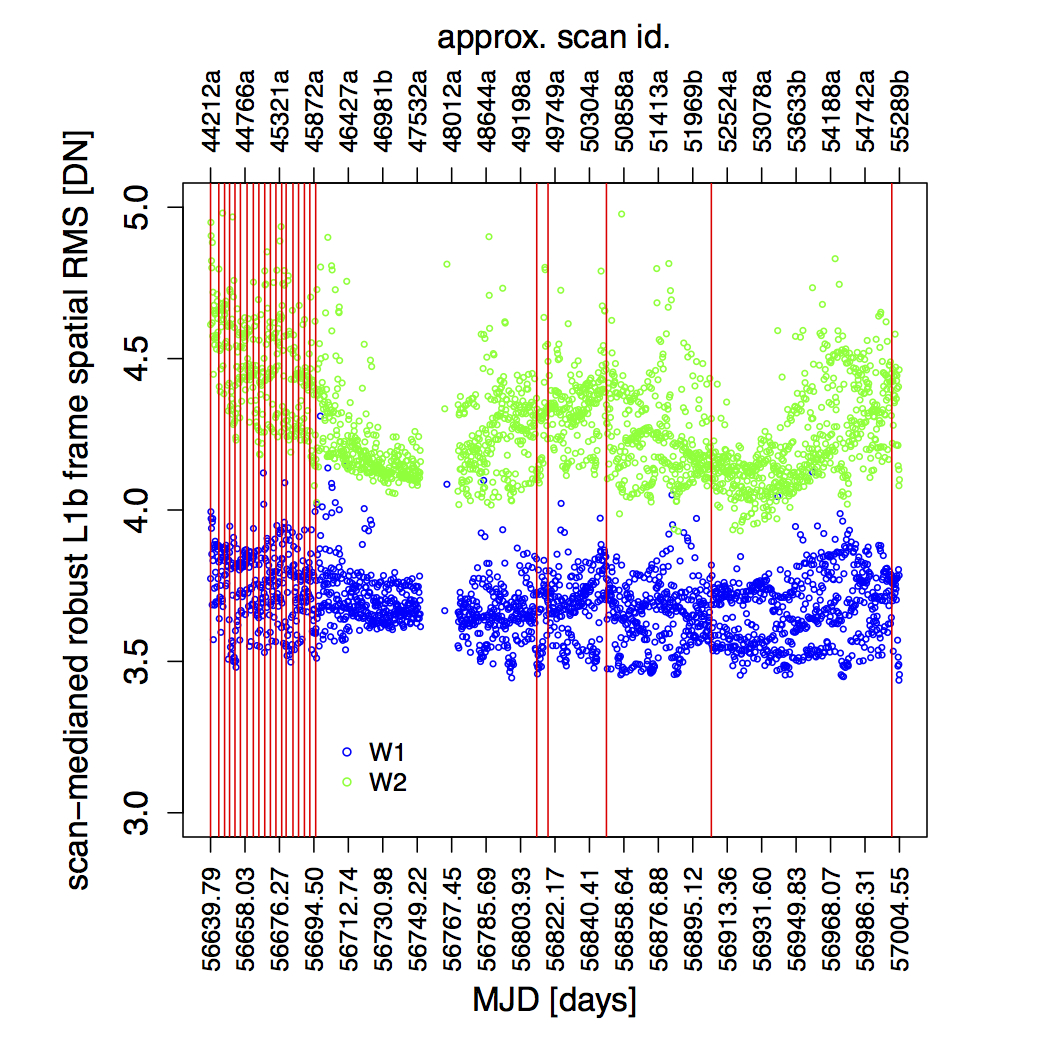

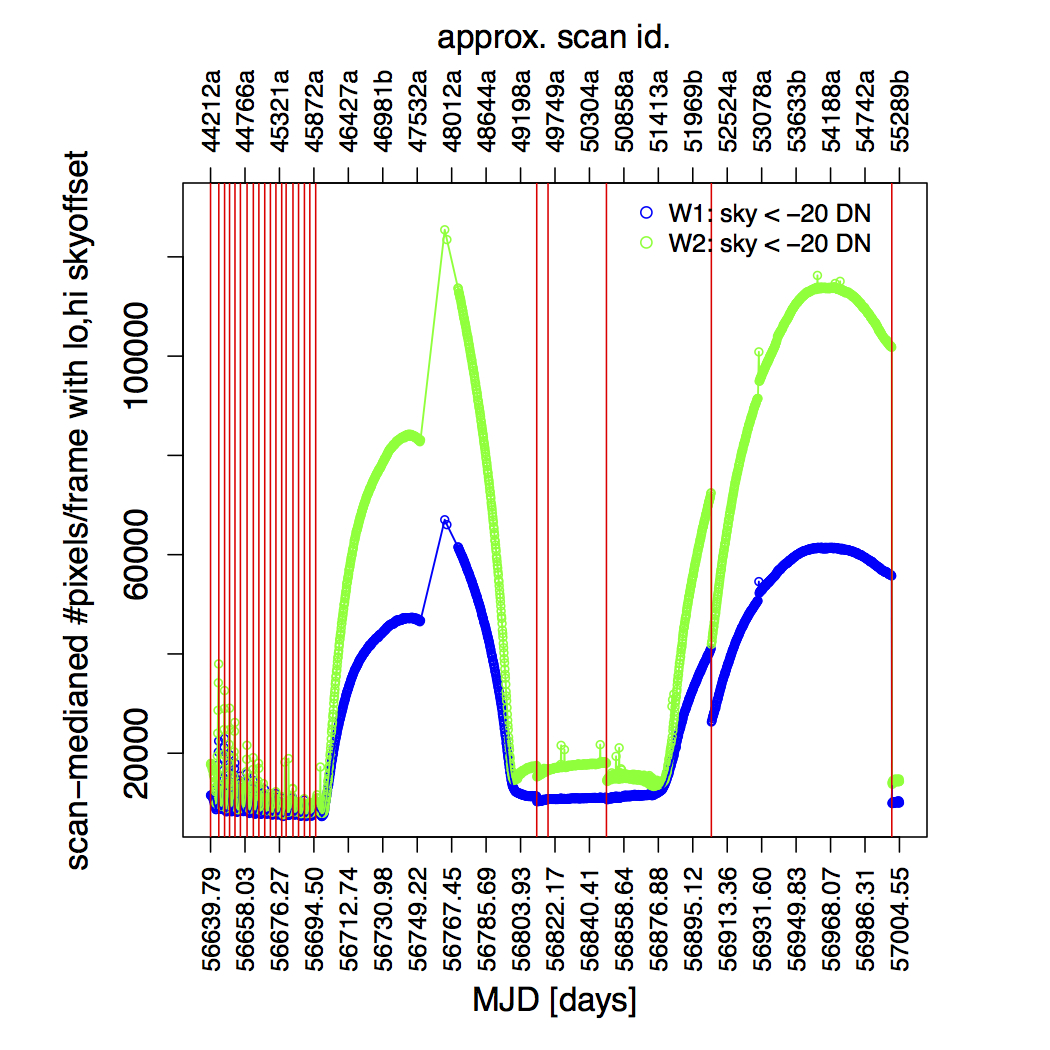

Calibrated (L1b) frame metrics from YEAR 1 processing: 12/13/13 - 12/13/14 ** NOTE: these are not updated as regularly as the incremental trends above. * median of robust spatial frame-pixel RMS per scan as a function of MJD: medrms_vs_mjdL1b_v7.5_yr1.jpg verticle red lines demarcate the calibration delivery dates. * median number of low and high sky-offset pixels with |value|>20 DN over scan: These lo/hi pixels were subtracted when making final L1b products. These trends primarily serve as an indicator of how far/close the input static darks were to the true state of the detector. I.e., the dynamic sky-offset calibrations will need to catch/correct "fewer" low/high dark pixels if the input darks were perfect. This can be seen soon after a calibration update (the discontinuous jumps). medskyLo_vs_mjd_v7.5_yr1.jpg medskyHi_vs_mjd_v7.5_yr1.jpg verticle red lines demarcate the calibration delivery dates. * median of ratio: "robust frame-pixel RMS/mode{error-model pixel uncertainty}" over all frames per scan: medchi_vs_mjdL1b_v7.5_yr1.jpg verticle red lines demarcate the calibration delivery dates.
F. Masci, 01/27/2016
