A subset of the SA57 galaxies with highly inclined profiles,
b/a < 0.70, and J brighter than 14.3, are included here. It can be seen
that the orientation is comparable at all three bands and is consistent
with the corresponding optical image for most galaxies.

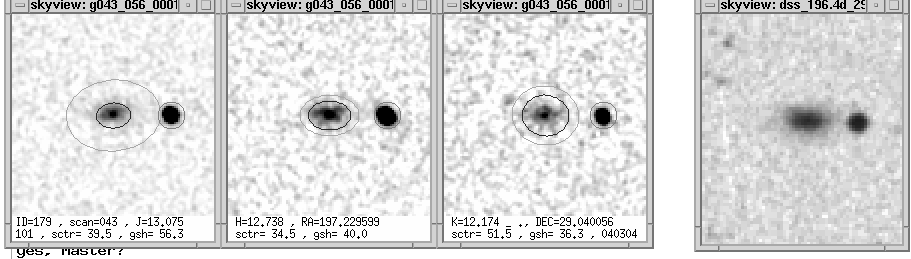

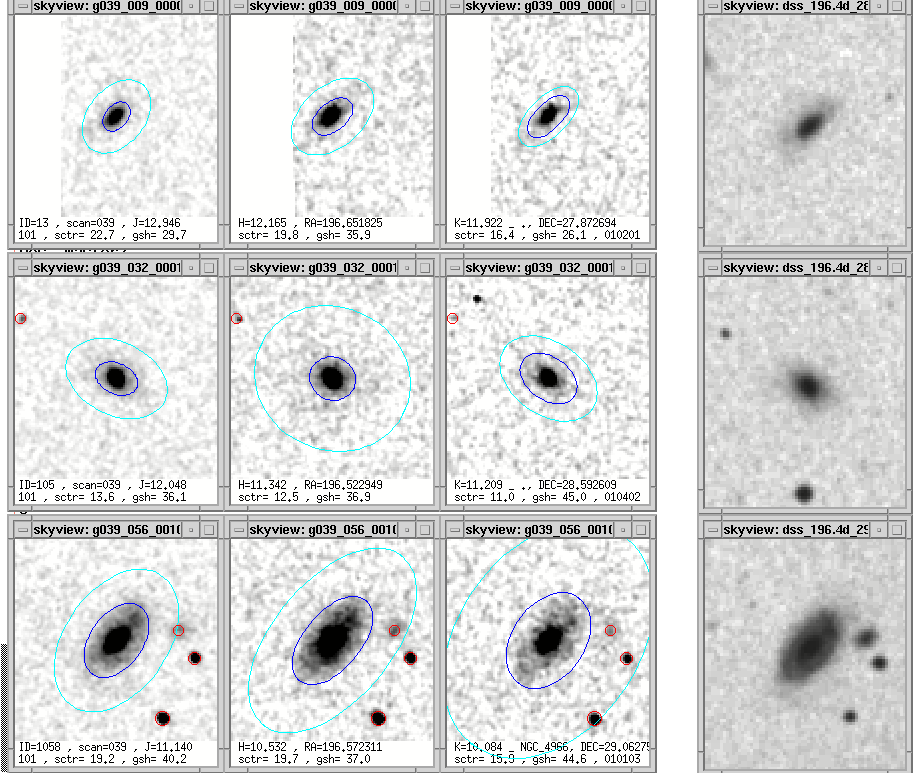

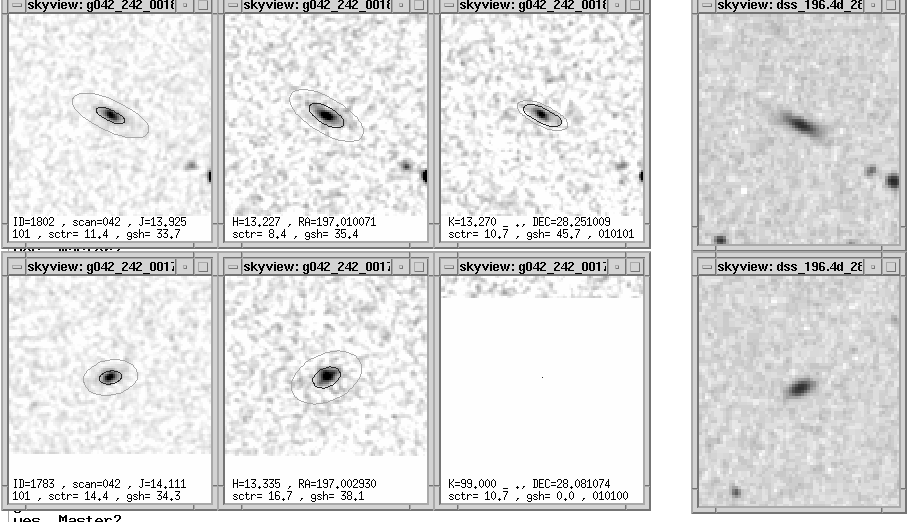

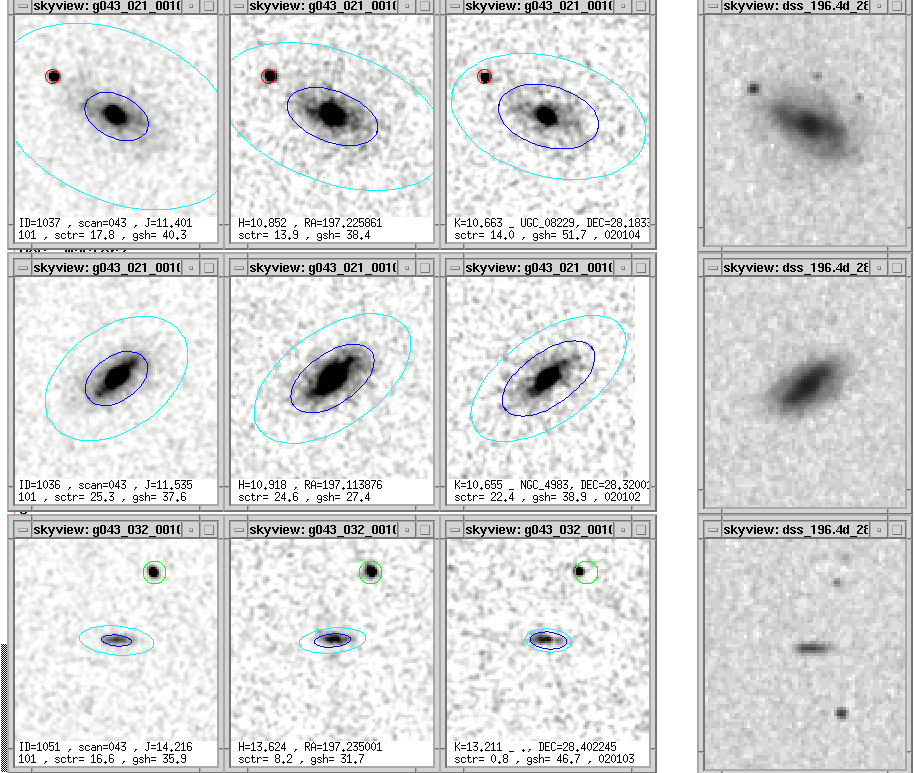

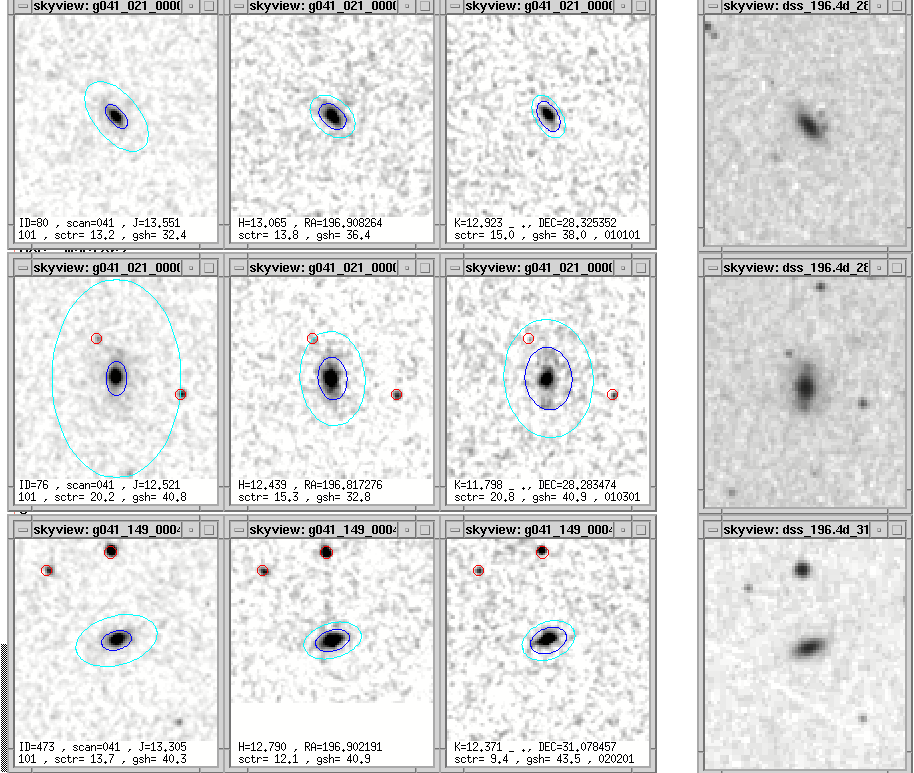

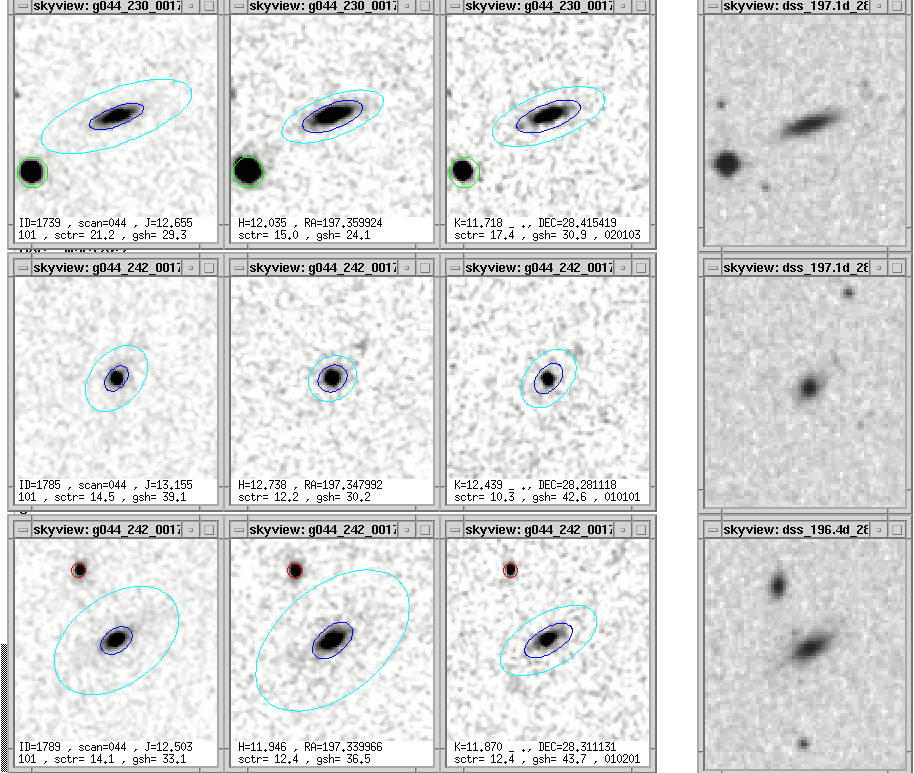

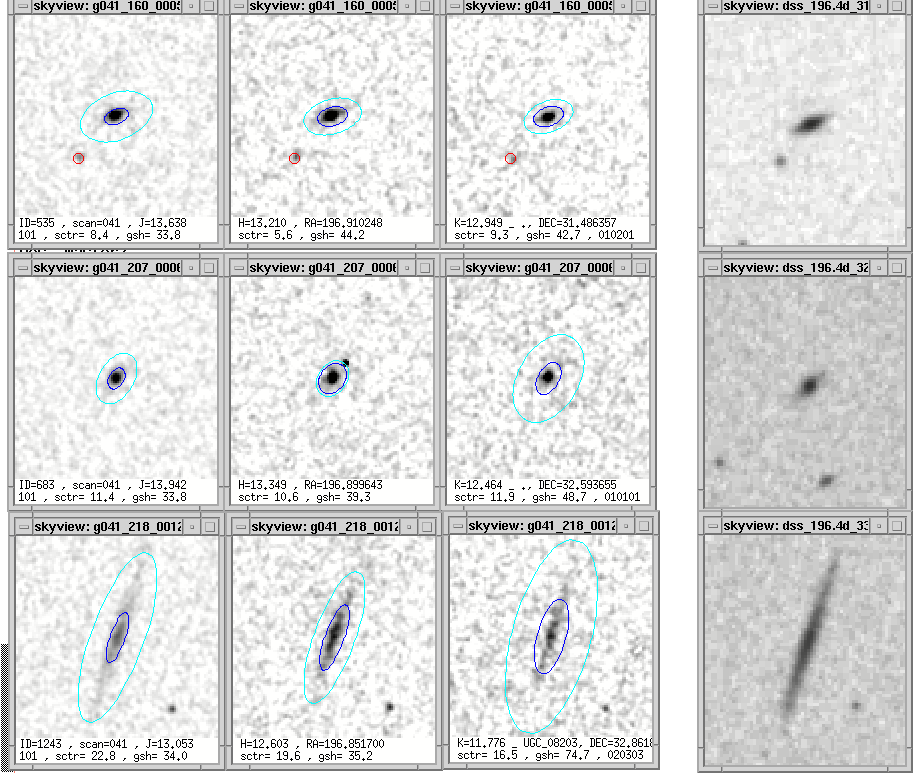

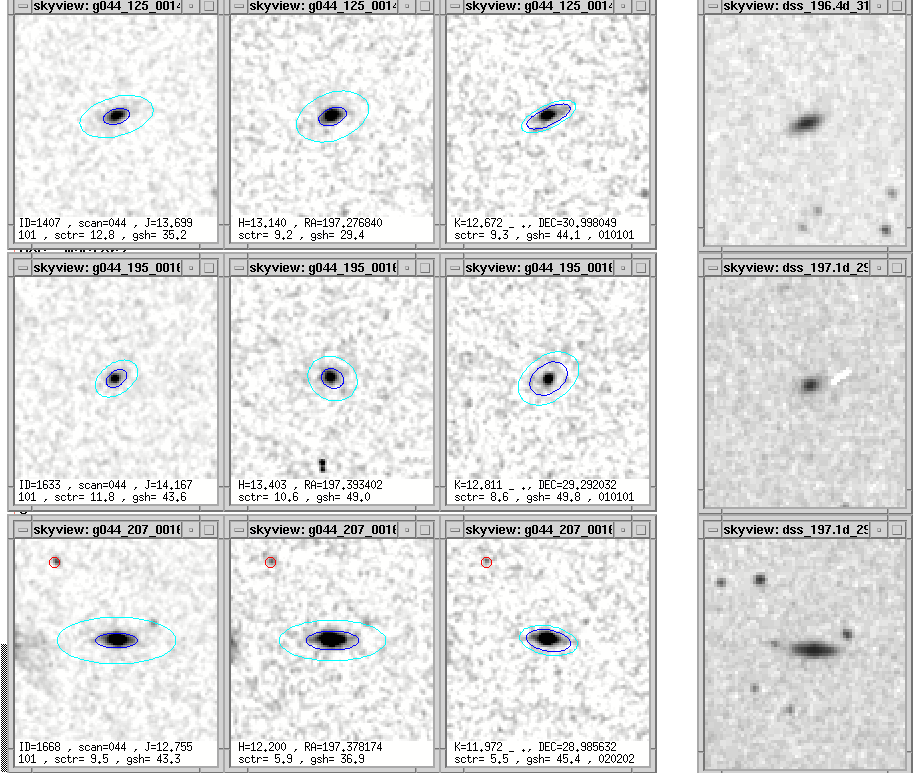

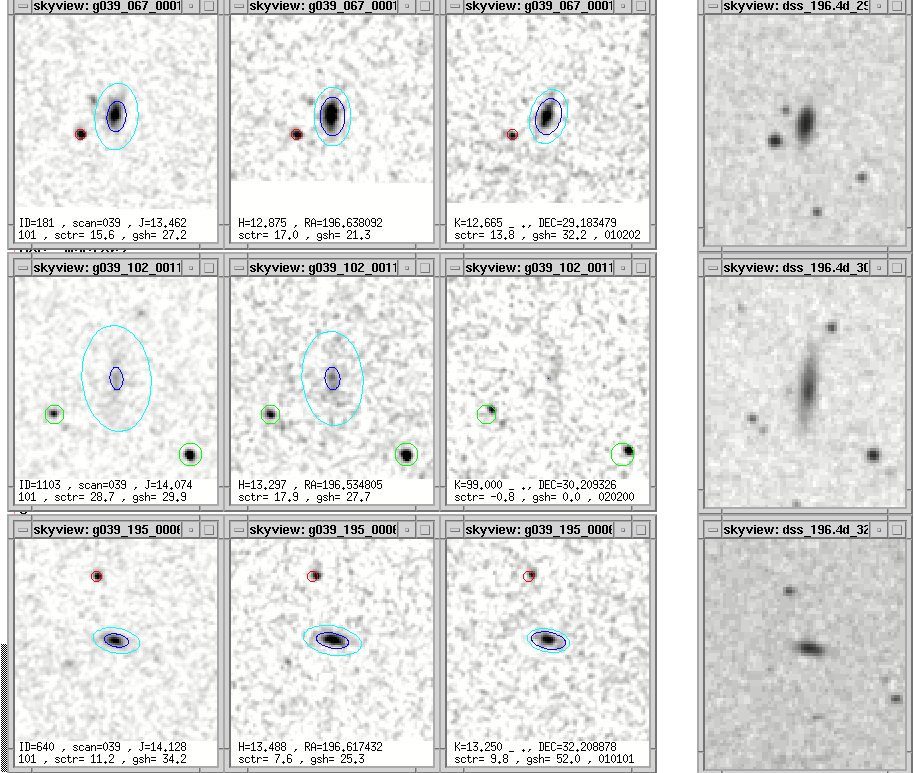

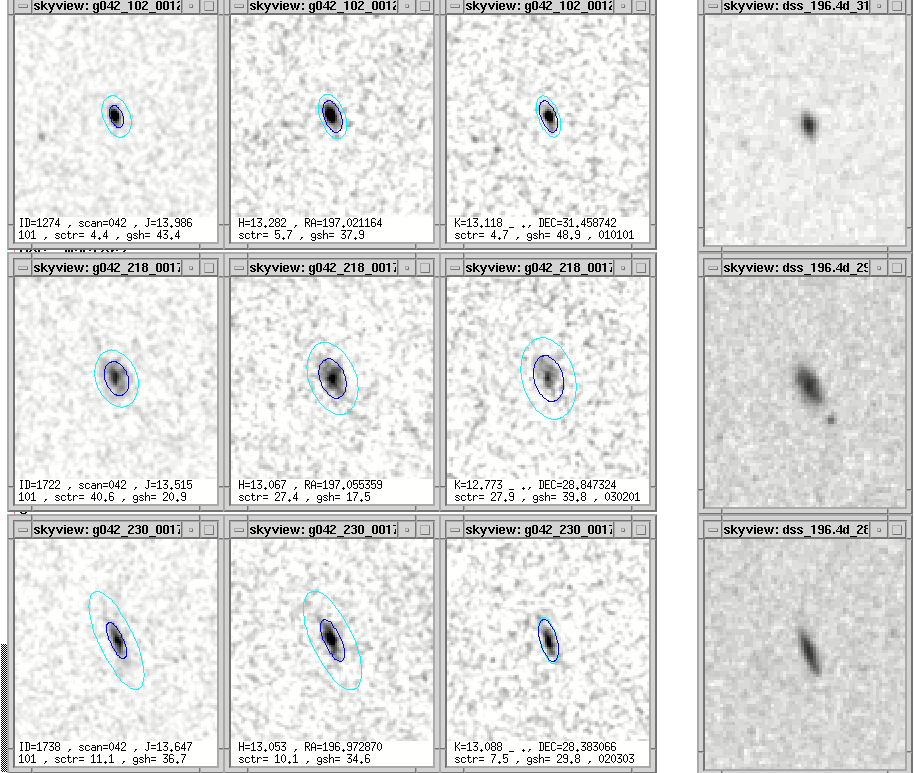

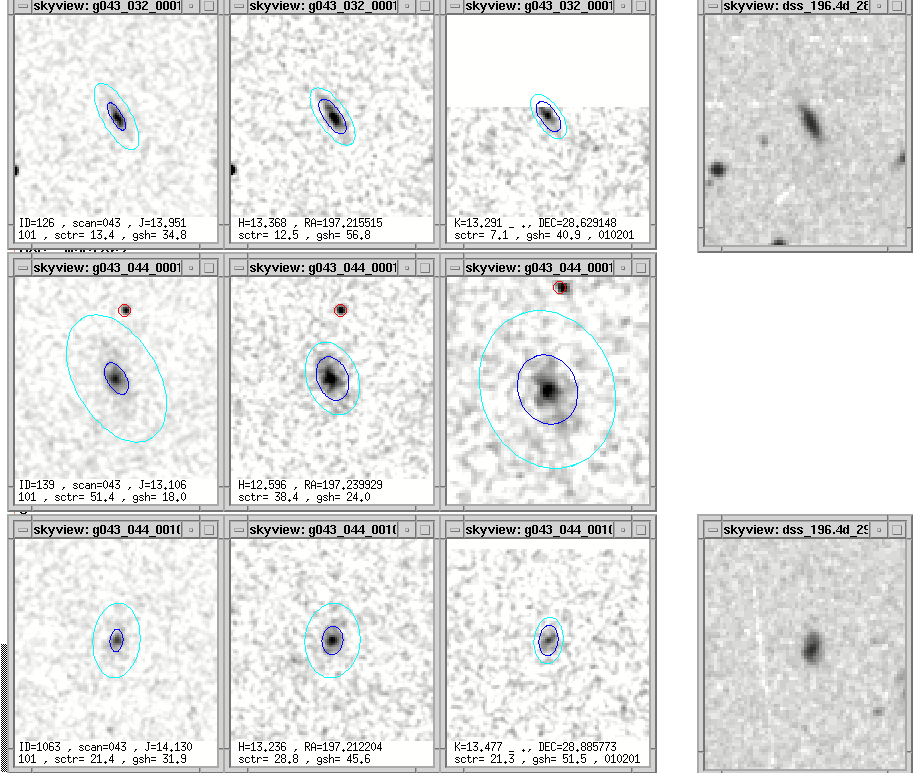

The first column is the J band image, second column the H band image, third column the K band image and the fourth column is the DSS optical image. The dark blue elliptical contour represents the 20 mag per sq. arcsec isophotal area, and the light blue contour the "flux growth" elliptical area. Sources that had been "subtracted" from the object fields are circled in red with the size of the circle given by the subtraction radius. Sources circled with a green circle/ellipse represent sources that were previously processed and subsequently blanked from the object field (blanked pixels are then substituted with corresponding isophotal values given by the object of interest, thereby recovering pixel information).
