This Subsystem Design Specification (SDS) document describes
the basic requirements, assumptions, definitions, software-design details,
algorithms, QA, and necessary interfaces for the COADD subsystem of the WISE
Science Data System (WSDS). It is used to trace the incremental development of
this subsystem, and contains sufficient detail to allow future modification or
maintenance of the software by developers other than the original developer.
framecoadder is a script that drives the COADD subsystem of the WISE Science Data System (WSDS). It is principally used to generate WISE Atlas Image products, but is generic enough for use on any astronomical image data that supports the FITS and WCS standards. It is a Perl script that threads together the various co-addition modules: AWAIC and AWOD (written in ANSI-compliant C), and contains functionality for background and throughput matching, moon-contamination flagging, resolution enhancement (HiRes), and Quality Assurance (QA). Throughout this document, the names ÒAWAICÓ, framecoadder, or wframecoadder are used interchangeably. The HiRes functionality is not used in the generation of WISE Atlas Image products. It can be executed offline using the equivalent, publicly available AWAIC tool (for details, see http://wise2.ipac.caltech.edu/staff/fmasci/awaicpub.html).
Overall, framecoadder performs the following steps, each of which can be
turned on/off using command-line switches.
This document is organized along the major themes of
Requirements; Other Software Interfaces; Assumptions; Functional Descriptions
and Dependencies; Input/Output; Algorithm Descriptions; Testing; and Liens. The
material contained in this document represents the current understanding of the
capabilities of the major WISE systems and sub-systems. Areas that require
further analysis are noted by TBD (To Be Determined).
Below we summarize the requirements pertaining to the
format, properties and quality of the final release WISE Atlas Image products.
These are from the WSDC Functional Requirements Document (¤1.3).
-
L4WSDC-001: The WSDC shall produce a digital Image
Atlas that combines multiple survey exposures at each position on the sky.
-
L4WSDC-021: The images in the final WISE Image Atlas
shall be re-sampled to a common pixel grid at all wavelengths.
-
L4WSDC-022: The photometric calibration of the final
WISE Image Atlas shall be tied to the photometric calibration of the final WISE
Source Catalog.
-
L4WSDC-023: The WSDC shall make all WISE image data
available in accordance to the Flexible Image Transport (FITS) astronomical
data standard.
-
L4WSDC-026: The WSDC shall generate and archive
coverage maps that show the number of independent observations that go into
each pixel of the Image Atlas images in each band. The coverage numbers shall
take into account focal plan coverage and losses due to poor data quality, low
responsivity and/or high noise masked pixels, and pixels lost because of cosmic
rays and other transient events.
-
L4WSDC-051: The WSDC shall make the WISE catalog and
image products available to the community via the internet through appropriate
web-based tools.
-
L4WSDC-053: The WSDC shall make the Image Atlas and
Catalog products accessible to the astronomical community in collaboration with
the NASA/IPAC Infrared Science Archive (IRSA) to ensure long-term availability
beyond the end WISE missions operations and data processing phase, and to
insure interoperability with other NASA mission archives.
-
L4WSDC-060: The WSDC archive shall provide a web-based
interface to enable selection, display and retrieval of any or all single-epoch
images and combined Atlas Images based on position or time of observation for
the purpose of quality assurance, validation and analysis. The goal shall be to
select on any image metadata parameter.
-
L4WSDC-078: The WISE science data products shall use
the International Celestial Reference System (ICRS) to describe the positions
and motions of celestial bodies. WISE astrometry shall be mapped into the ICRS
using the 2MASS All-Sky Point Source Catalog as the primary astrometric
reference.
-
L4WSDC-084: The WISE Image Atlas shall be constructed
by combining all available science images covering the sky. This does not
include image pixels rejected because of low responsivity, high dark current or
read noise, transient behavior such as charged particle impacts, or scattered
light due to moon proximity.
-
L4WSDC-086: The web-based interface to the WISE Image
Atlas shall allow the user to view and retrieve an image in any of the four
WISE bands with any specified center (tangent point) and any size up to at
least 1¡ « 1¡.
2-D Two-Dimensional
3-D Three-Dimensional
ADASS Astronomical
Data Analysis Software and Systems
ANSI American
National Standards Institute
AWAIC A
WISE Astronomical Image Co-adder
AWOD A
WISE Outlier Detector
Bmatch Background
matching
CDR Critical
Design Review
CFV Correction
Factor Variance
COADD Co-Adder
subsystem
COBE COsmic
Background Explorer
COV depth-of-COVerage
CPU Central
Processing Unit
CROTA2 Coordinate
ROTAtion about axis 2 (W.of.N convention)
DN Data
Number
DRAM Dynamic
Random Access Memory
E-W East-West
FDD Functional
Design Document
FRD Functional
Requirements Document
FITS Flexible
Image Transport System
FOV Field-Of-View
GB Giga-Byte
HIRES HIgh
RESolution (sometimes written as HiRes)
HST Hubble
Space Telescope
I/O Input
/ Output
ICal Instrumental
Calibration
ICRS International
Celestial Reference System
INT INTensity
IPAC Infrared
Processing and Analysis Center
IR Infra-Red
IRAC Infra-Red
Array Camera
IRAS Infra-Red
Astronomical Satellite
IRSA NASA/IPAC
Infra-Red Science Archive
ISO International
Organization for Standardization
JPL Jet
Propulsion Laboratory
JPEG Joint
Photographic Experts Group format
Jy Jansky
MAD Median
Absolute Deviation
MAGZP MAGnitude
Zero Point
MAGZPUNC MAGnitude Zero
Point UNCertainty
MB Mega-Byte
MCM Maximum
Correlation Method
MED MEDian
MOPEX Mosaicking
and Point source EXtraction
N-S North-South
NaN Not-a-Number
NEP North
Ecliptic Pole
ODET Outlier
Detection
PA Position
Angle (E.of.N convention)
PC Personal
Computer
PDL Perl
Data Language
PRF Point
Response Function
PSF Point
Spread Function
PTILE PercentTILE
QA Quality
Assurance
QAP Quality
Assurance Plan
RAM Random
Access Memory
RL Richardson-Lucy
algorithm
RMS Root-Mean-Square
fluctuation
RSS Root-Sum-Squared
SAA South
Atlantic Anomaly
SDS Subsystem
Design Specification
SEP South
Ecliptic Pole
SIP Simple
Imaging Polynomial
SIS Subsystem
Interface Specification
S/N Signal-to-Noise
SNR Signal-to-Noise
Ratio (same as S/N)
SUTR Sample-Up-The-Ramp
SVB Slowly
Varying Background
SVG Scalable
Vector Graphics format
TBD To
Be Determined
TBR To
Be Resolved
Tmatch Throughput
matching
2MASS Two
Micron All Sky Survey
UNC UNCertainty
WCS World
Coordinate System
W? WISE
band number: ? = 1, 2, 3, or 4 (~3.4, 4.6, 12.1, 22.2 mm)
WISE Wide-field
Infrared Survey Explorer
WSDC WISE
Science Data Center
WSDS WISE
Science Data System
WISE shall downlink image data frames consisting of 1024 « 1024
pixels for bands 1, 2 and 3 with a projected size of 2.75 arcsec/pixel, and 512
«
512 pixels for band 4 with a size of 5.5 arcsec/pixel. This corresponds to
image dimensions of È 47 « 47 arcmin on the sky for all bands. The goal of image
co-addition is to optimally combine a set of (usually dithered) exposures to
create an accurate representation of the sky, given that all instrumental
signatures, glitches, and cosmic-rays have been properly removed. By
ÒoptimallyÓ, we mean a method which maximizes the signal-to-noise ratio (SNR)
given prior knowledge of the statistical distribution of the input

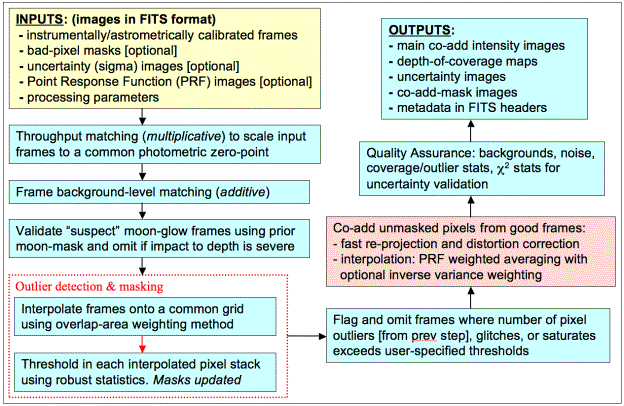

measurements. Figure 1 gives an overview of the main steps in AWAIC. The
co-addition (and optional HiResÕing) step is shown in the red box. All steps
are expanded below.
It is assumed that the input science frames (specified by
–imglist) have been preprocessed to remove instrumental signatures and
their pointing refined in some WCS using an astrometric catalog. Accompanying
bad-pixel masks (–msklist) and prior-uncertainty frames (–unclist)
are optional. The frames are assumed to overlap with some predefined footprint
(or tile) on the sky. This also defines the dimensions of the co-add products.
The uncertainty frames store 1-s values for each pixel. These are
expected to be initiated upstream, e.g., from a noise model specific to the
detector and then propagated and updated as the instrumental calibrations are
applied. The uncertainties are used for optional inverse-variance weighting of
the input measurements and for computing co-add flux uncertainties. If
bad-pixel masks are specified, a bit-string template (–m_coad) is used
to select which conditions to flag against. The corresponding pixels in the
science frames are then omitted from co-addition.
Figure 1:
processing flow in AWAIC
The first
(optional) step is to scale the frame pixel values to a common photometric
zero-point using calibration zero-point information in each FITS header.
Currently, the software reads a zero-point in magnitudes stored in the ÒMAGZPÓ
keyword. The common (or target) zero point is then written to the FITS headers
of the co-add products to enable the calibration of photometric measurements.
Frame overlap matching (or background-level regularization) is then performed.

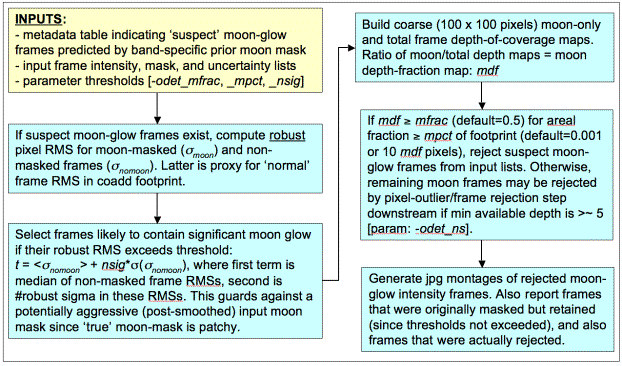

Following this, input frames are checked for moon-glow using a prior
moon-centric mask tagged for rejection if found to be severe according to
spatial metrics. These steps are described in ¤¤4,5. Pixel-outlier rejection is then performed and described in ¤6. Since these initial steps modify the
input frame and mask pixel values, local copies of the frames and masks are
made to avoid overwriting the originals. After pixel-outliers have been tagged
in the input masks, entire frames containing an excessive number of outliers
are further rejected before co-addition. During co-addition, all ÒgoodÓ
(unmasked) pixels are reprojected and interpolated onto an upsampled output
grid. The reprojection uses a fast input-to-output plane coordinate
transformation that implicitly corrects for focal plane distortion if
represented in the input FITS headers. The Simple Imaging Polynomial (SIP)
convention for distortion is assumed (Shupe et al. 2005). Details of
co-addition are described in ¤¤7,8
and HiResÕing in ¤9.
The primary outputs
from AWAIC are the main intensity image (–o1_coad), a depth-of-coverage
map (–o2_coad), a 1-s uncertainty image based on input priors (–o3_coad), an image of the outlier
locations (–om_odet), and optionally if the overlap-area interpolation
method was used, an image of the data-derived uncertainty computed from the
standard deviation in each interpolated pixel stack and appropriately scaled by
the depth-of-coverage (–o4_coad). Additional ancillary products are generated under HiResÕing. AWAIC also produces a wealth of Quality
Assurance (QA) metrics over pre-specified regions of the co-add footprint (the
latter is only possible in the WISE automated pipeline). These include
background noise estimates, coverage and outlier statistics, and metrics to
validate co-add flux uncertainties using c2 tests. A summary of QA outputs
is given in ¤11.
framecoadder is a
Perl script that takes all of its input from the command-line. This
command-line can be set-up and executed via a shell script. Prior to parsing
the command-line, default values for the optional input parameters are assigned.
All parameters are checked for validity and that theyÕre specified in the
correct combination. Assumptions on input data formats are summarized in ¤3.2.
Table 1 summarizes all command-line inputs, their purpose,
data-type and units where applicable, default assignments, and section(s) in
this document where you can find more information. Command-line inputs suffixed
by Ò_odetÓ in Table 1 are specific to outlier detection. Inputs suffixed by Ò_coadÓ are specific to co-addition and/or
HiResÕing. All other inputs are generic to overall processing.
Option |
Description |
Data-type, [units] |
Default |
More info. |
-imglist |
Input text file name
containing list of pre-calibrated 32-bit / pixel FITS intensity images |
Char*256 |
Required input |
¤2, ¤3.2 |
-unclist |
Input text file name
containing list of 32-bit / pixel FITS (1-sigma) uncertainty images |
Char*256 |
None used |
¤2, ¤3.2 |
-msklist |
Input text file name
containing list of 32-bit / pixel (long int) FITS mask images |
Char*256 |
None used |
¤2, ¤3.2 |
-moonmeta |
Input frame metadata table
containing prior moon-flag information for each band |
Char*256 |
No moon-contamination
flagging performed |
¤5 |
-psflist |
Input text file name
containing list of focal-plane dependent PSF images. Only searched for if
<-psfdir> below not specified. |
Char*256 |
<psfdir> and
<-basepsf> first used if specified. If <-psflist> also
absent, area-overlap method <-sc_coad> is used |
¤3.2, ¤7 |
-psfdir |
Input pathname containing
PSF files |
Char*256 |
<-psflist> used |
¤3.2 |
-basepsf |
Input generic base filename
of PSF for N x N frame grid, for constructing focal-plane dependent
PSFs |
Char*256 |
<-psflist> used |
¤3.2 |
-outdir |
Pathname for intermediate
files and working directory |
Char*256 |
Required input |
¤4.1, ¤6.2.2, ¤6.2.3, ¤9.1,
¤9.2 |
-qadir |
Pathname for output QA diagnostic
files and plots. Only used in automated WISE processing |
Char*256 |
–outdir <path> |
¤11 |
-archdir |
Pathname for archivable
products and metadata |
Char*256 |
–outdir <path> |
¤11 |
-qameta |
Output filename for QA
meta-data. Will be written under path specified by <-archdir> |
Char*256 |
meta-coadd.tbl |
¤11 |
-qagrid |
Number of partitions N along an axis of co-add footprint for computing QA
metrics within N x N square regions |
I*2 int |
3 |
¤11 |
-sizeX |
E-W mosaic dimension for
crota2 = 0 |
R*4 float [degrees] |
Required input |
¤3.2, ¤6.2 |
-sizeY |
N-S mosaic dimension for
crota2 = 0 |
R*4 float [degrees] |
Required input |
¤3.2, ¤6.2 |
-ra |
Right Ascension of mosaic
center |
R*4 float [degrees] |
Required input |
¤3.2, ¤6.2 |
-dec |
Declination of mosaic
center |
R*4 float [degrees] |
Required input |
¤3.2, ¤6.2 |
-rot |
Mosaic position angle in
terms of CROTA2: +Y axis W of N: 0 ² rot < 360 |
R*4 float [degrees] |
0.0 |
¤3.2, ¤6.2 |
-pa_odet |
Output interpolation grid
pixel scale for outlier detection; recommend: ³ 0.5 * input native pixel
scale |
R*4 float [arcsec] |
Required if <-odet>
set |
¤6.2 |
-pb_odet |
Additional padding to add
around mosaic grid for outlier detection; recommend: of order PRF size for
co-addition |
R*4 float [arcsec] |
0 => possible outliers
outside nominal mosaic boundary may contribute to co-add |
¤6.2 |
-nx_odet |
Number of tiles along X
dimension of mosaic for outlier detection |
I*2 int |
1 => whole mosaic |
¤6.2, ¤6.2.2, ¤6.2.3 |
-ny_odet |
Number of tiles along Y
dimension of mosaic for outlier detection |
I*2 int |
1 => whole mosaic |
¤6.2, ¤6.2.2, ¤6.2.3 |
-tl_odet |
Lower-tail threshold in
number of sigma for outlier detection |
R*4 float |
w1 – w4: 8, 8, 7, 7 |
¤6.1, ¤6.2.2, ¤6.2.3, ¤9.5 |
-tu_odet |
Upper-tail threshold in
number of sigma for outlier detection |
R*4 float |
w1 – w4: 8, 8, 7, 7 |
¤6.1, ¤6.2.2, ¤6.2.3, ¤9.5 |
-ts_odet |
Minimum "(median
bckgnd) / sigma" value for stack above which to rescale <-tl> and
<-tu> thresholds by
<-r_odet> factor |
R*4 float |
w1 – w4: 8, 8, 8, 8 |
¤6.1, ¤6.2.2 |
-ta_odet |
Maximum out/in pixel area
ratio below which to use nearest-neighbor and max-overlap area weighted
interpolation; used for outlier detection |
R*4 float |
0.26 |
¤6.2.2 |
-r_odet |
Scaling factor for
upper/lower-tail thresholds in stacks satisfying <-ts_odet>; for
outlier detection |
R*4 float |
2 |
¤6.1, ¤6.2.2 |
-s_odet |
Scaling factor for sMAD estimates for outlier detection |
R*4 float |
1.0 |
¤6.2.1 |
-b_odet |
Smooth sMAD images using median filter? 0=>no;
1=>yes; used for outlier detection |
I*2 int |
0 |
¤6.2.1 |
-w_odet |
Square window side length
in pixels for median filter; must be odd integer; used for outlier detection |
I*2 int |
3 |
¤6.2.1 |
-ip_odet |
Use signed 2-byte integer
storage with scaled log transform for stack estimators in outlier detection?
0=>no; 1=>yes |
I*2 int |
1 |
¤6.2.3 |
-is_odet |
Scaling factor to support
2-byte integer storage option -ip_odet 1; require < 32767/Log_e[max] for
expected max interp pix value |
R*4 float |
2000.0 |
¤6.2.3 |
-ns_odet |
Minimum number of stack
samples for reliable outlier detection |
I*2 int |
4 => hard lower limit
for sMAD
method |
¤6.1, ¤6.2.1 |
-nei_odet |
Minimum number of neighbors
around a pixel with <-m_odet> set such that if > than this,
expansion over <-exp_odet> x <-exp_odet> region will be triggered
if <-expodet> switch was set |
I*2 int |
w1 – w4: 20, 20, 16, 16 |
¤6.2.3 |
-nsz_odet |
Assume pixel region of size <-nsz_odet> x
<-nsz_odet> centered on outlier pixel when counting outlier neighbors;
must be odd number. |
I*2 int |
w1 – w4: 7, 7, 7, 7 |
¤6.2.3 |
-exp_odet |
Desired <-exp_odet> x <-exp_odet> pixel
region to expand (or force) into outliers centered on original outlier pixel;
must be odd number. |
I*2 int |
w1 – w4: 19, 19, 27, 27 |
¤6.2.3 |
-expodet |
Switch to expand detected
outliers (or blanket) over <-exp_odet> x
<-exp_odet> region after thresholding on min. number of outlier
neighbors <-nei_odet> within region <-nsz_odet> x <-nsz_odet> |
Null |
1 |
¤6.2.3 |
-m_odet |
Mask bit to set for
temporal outlier detection in input masks. Specified as decimal equivalent |
I*4 int |
134217728 => bit 27 in
WISE frame masks; value 0 => no mask updating |
¤6.1, ¤6.2.2 |
-om_odet |
Output FITS filename of
8-bit mosaic showing temporal outlier locations |
Char*256 |
None generated |
¤2, ¤6.2.2, ¤6.2.3 |
-h_odet |
Homogenise sigma_MAD images
by setting to median value? 0=>no; 1=>yes. Used for outlier detection. |
I*2 int |
1 |
¤6.2.1 |
-k_odet |
Minimum S/N in coadd tile
below which to homogenise sigma_MAD values under -h_odet processing. |
R*4 float |
3.0 |
¤6.2.1 |
-q_odet |
Number of spatial sigma in
sigmad to homogenise sigma_MAD values under -h_odet processing. |
R*4 float |
5.0 |
¤6.2.1 |
-mg_odet |
Mask bit corresponding to
spike-glitch detection in input masks from ical for omitting entire frames
using tg_odet threshold. |
I*4 int |
268435456 => bit 28 in
WISE frame masks; 0 => thresholding not
triggered. |
¤6.2.4 |
-tn_odet |
Threshold for max tolerable
number of temporal outliers per frame above which entire frame will be
omitted from co-addition |
I*2 int [pixels] |
w1 – w4: 200000, 200000, 150000, 35000 |
¤6.2.4 |
-tg_odet |
Threshold for max tolerable
number of spike-glitch pixels per frame above which entire frame will be
omitted from co-addition |
I*2 int [pixels] |
w1 – w4: (big values
=> turned off) 1500000, 1500000, 1500000, 650000 |
¤6.2.4 |
-tsat_odet |
Threshold for max tolerable
number of saturated pixels per frame above which entire frame will be omitted
from co-addition |
I*2 int [pixels] |
w1 – w4: 412000, 412000, 412000, 103000 |
¤6.2.4 |
-mflag |
Flag (0 or 1 => no or
yes) to perform moon-frame flagging |
I*2 int |
w1 – w4: 1, 1, 1, 1 |
¤5 |
-mfrac |
Minimum fraction of
available depth-of-coverage above which to flag frames due to moon
contamination if area over footprint where this happens is also > mpct |
R*4 float |
w1 – w4: 0.5, 0.5, 0.5, 0.5 |
¤5 |
-mpct |
Minimum areal coverage over
footprint above which to consider flagging moon-contaminated frames; see also
mfrac parameter |
R*4 float |
w1 – w4: 0.001, 0.001, 0.001, 0.001 |
¤5 |
-nsig |
Number of robust sigma
above non-moon-glow median RMS beyond which suspect moon-masked frame is
genuinely moon contaminated |
R*4 float |
w1 – w4: 4, 4, 2, 2 |
¤5 |
-m_coad |
Mask template bitstring
specifying conditions for omitting pixels from co-add. Specified as decimal equivalent |
I*4 int |
0 => no flagging |
¤2, ¤3.2, ¤3.1 |
-ms_coad |
Mask template bitstring
specifying saturated pixels in input mask to tag in output mask (-om_coad);
latter only possible for -n_coad = 1 co-adds |
I*4 int |
0 => no flagging |
¤3.2, ¤6.2.4, ¤7.2.4 |
-nmaxodet |
Maximum number of input
frames to trigger partitioning of input lists if -partition switch is set.
Must be greater than 100 |
I*2 int |
200 |
¤6.2.3 |
-pa_coad |
Output mosaic pixel scale
in absolute units |
R*4 float [arcsec] |
1.375 |
¤3.2, ¤7 |
-pc_coad |
Ratio of internal linear
cell pixel size to output mosaic pixel size; must = input PSF pixel sizes |
R*4 float |
0.5 |
¤3.2, ¤7 |
-ct_coad |
Maximum tolerance for
difference between cell-grid pixel size <-pc_coad> and input PSF pixel
size |
R*4 float [arcsec] |
0.0001 |
¤3.2, ¤7 |
-wf_coad |
Combine input pixels in
single interp frame and stack using inverse variance weighting? 0=>no,
1=>yes. If yes, requires input uncertainties <-unclist> |
I*2 int |
0 |
¤7 |
-sf_coad |
Scale output pixel flux
with pixel size? 0=>no, 1=>yes |
I*2 int |
1 => e.g., if input
frame pixels are in DN. |
¤3.2 |
-sc_coad |
Create simple co-add/mosaic
using exact overlap-area weighting? 0=>no, 1=>yes. If yes, PSFs not
needed. |
I*2 int |
0 |
¤8 |
-d_coad |
Input pixel linear drizzle
factor, = ratio: new pix scale/native pix scale (<= 1); only used for
simple coadds <-sc_coad 1> |
R*4 float |
1.0 => no drizzling of
input pixels |
¤8 |
-n_coad |
Number of MCM (HIRES)
iterations |
I*2 int |
1 => PRF-interpolated
coadd with no resolution enhancement |
¤3.2, ¤7, ¤9.1, ¤9.3.1,
¤9.4, ¤9.5 |
-n_coadn |
Number of additional MCM
(HIRES) iterations to support flux-bias (ringing suppression) processing |
I*2 int |
0 => additional
iterations under Ò-flxbiasÓ mode not performed |
¤9.4 |
-rf_coad |
Rotate PSF when projecting
input frame pixels? 0=>no, 1=>yes. Recommended for -n_coad > 1 |
I*2 int |
0 |
¤3.2, ¤7 |
-if_coad |
Method for interpolating
PSF onto cell-grid: 0=>nearest neighbor, 1=>area-overlap weighting. 1
only possible for Ò–n_coad 1Ó |
I*2 int |
0 |
¤3.2, ¤7 |
-fp_coad |
Create and use overlap
area-weighted co-add for MCM starting model; 0=>no, 1=>yes; Default=0
=> use flat prior image of 1's; only used in first MCM pass if
<-flxbias> set |
I*2 int |
0 |
¤9.1 |
-h_coad |
Minimum tolerance for %
change in real CFV from iteration n -> n+1 (initial <-n_coad> only)
below which MCM pixel-cell arrays get frozen at n; assists in
noise-suppression; may need to also use aggressive outlier rejection to
assist in suppressing noise spikes and keeping CFV low; activated if -n_coad
> 1 and -o5_coad,-o6_coad
specified; -oi_coad output also useful |
R*4 float [percent] |
0.0 => no noise
suppression |
¤9.5 |
-oi_coad |
Output mosaic of
position-dependent ending iteration numbers; only generated if
-o5_coad, -o6_coad specified |
Char*256 |
None generated |
¤9.5 |
-of_coad |
Output mosaic of first
iteration MCM intensities in down-sampled frame; only generated for -n_coad
> 1 |
Char*256 |
None generated |
¤9.1 |
-crep_coad |
Replace int and unc coadd
pixels with covs < cmin_coad with NaN? 0=>no, 1=>yes |
I*2 int |
0 |
¤10 |
-cmin_coad |
Minimum depth-of-coverage
below which to replace int and unc coadd pixels with NaN if crep_coad=1 |
R*4 float |
4 |
¤10 |
-o1_coad |
Output mosaic intensity
image FITS filename |
Char*256 |
Required if <-coadd>
set |
¤2, ¤3.2, ¤7, ¤9.1 |
-o2_coad |
Output mosaic coverage map
FITS filename |
Char*256 |
Required if <-coadd>
set |
¤2, ¤7 |
-o3_coad |
Output uncertainty mosaic
FITS filename: valid for all -n >= 1 and Ò–sc_coad 1Ó co-adds; based
on input prior uncerts. Rescaled (using robust intensity RMS) for -n > 1 |
Char*256 |
None generated |
¤2, ¤3.2, ¤7, ¤9.3.2 |
-o4_coad |
Output standard deviation
mosaic FITS filename; can only be generated for simple area-overlap co-add:
Ò-sc_coad 1Ó; will not account for correlated noise like -o3_coad output.
Latter accounts for movement of noise-power to lower spatial frequencies |
Char*256 |
None generated |
¤2, ¤3.2, ¤8 |
-o5_coad |
Output mosaic of MCM
correction factors; really only valid for -n_coad > 1 products; |
Char*256 |
None generated |
¤9.1 |
-o6_coad |
Output mosaic of
data-derived MCM-uncertainties estimated from Correction Factor Variance
(CFV); really only valid for -n_coad > 1 products; rescaled
(using robust intensity RMS) for all -n >= 1 |
Char*256 |
None generated |
¤3.2, ¤9.3.1 |
-snu_coad |
S/N ratio coadd product
where 1-sigma uncertainties are from priors (-o3_coad output) and rescaled
for -n_coad > 1; only generated if -o3_coad output specified; for -n_coad
= 1, this product is a matched-filter optimized for detecting point
(PRF-like) sources; cannot be generated under -sc_coad = 1 mode |
Char *256 |
None generated |
¤9.3.3 |
-snc_coad |
S/N ratio coadd product
where 1-sigma uncertainties are purely data-derived (from CVF: -o6_coad
output) and rescaled; only generated if -o6_coad output specified; really
only applicable for HiRes with -n_coad (and optionally -n_coadn) > 1 and
obviously cannot be made under -sc_coad = 1 mode |
Char *256 |
None generated |
¤9.3.3 |
-om_coad |
Output 8-bit mosaic mask
name showing locations of bad and saturated pixels that occur at least once
in the stack; only applicable to -n_coad=1 co-adds |
Char* 256 |
None generated |
¤3.2 |
-ratmax |
Value of ratio: [84ptile
– med ] / [med – 16ptile ] above which a frame is suspected to
contain bright extended structure. Used to make the -bmatch step more robust |
R*4 float |
2.0 |
¤4.2, ¤9.3.3, ¤9.4 |
-siggrid |
Number of partitions along
an axis of final coadd product for finding smallest robust RMS to support
uncertainty coadd rescaling both from priors (-o3_coad) and/or CFV (-o6_coad) |
I*2 int |
8 |
¤9.3.1 |
-svbgrid |
Number of partitions along
an axis of native input frame for median SVB computation to support HiRes
with -flxbias processing and generation of S/N coadds: -snu_coad and/or
-snc_coad for -n_coad >= 1 |
I*2 int |
5 |
¤9.3.3, ¤9.4 |
-gausize |
Linear size of Gaussian
smoothing kernel as a multiple (factor) of median-filter window length
defined by NAXIS/svbgrid |
R*4 float |
3.0 |
¤9.3.3 |
-gausigm |
sigma_x, sigma_y of
Gaussian smoothing kernel as a multiple (factor) of -gausize |
R*4 float |
0.3 |
¤9.3.3 |
-magzp |
Global photometric
zero-point value to scale to |
R*4 float [mag] |
Required if <-tmatch>
set. Current defaults: 20.5, 19.5, 17.5, 13.0 |
¤4.1 |
-magzpun |
1-sigma uncertainties in
magzp, for writing to coadd FITS headers |
R*4 float [mag] |
Uses median of input frame
magzpuncs if these are not null. Otherwise, current defaults are: 0.0002,
0.0002, 0.0005, 0.0013. |
¤4.1 |
-tmatch |
Switch to perform throughput
(gain) matching of input frames |
Null |
0 |
¤4.1 |
-bmatch |
Optional background
(offset) matching of input frames; 0=>no, 1=>yes; |
I*2 int |
0 |
¤4.2, ¤9.3.3, ¤9.4 |
-bmeth |
Background-matching /
regularization method: 0 => robust planar fit; 1 => higher order surface
fit to clipped data; only applicable if -bmatch switch was set |
I*2 int |
1 |
¤4.2.2 |
-order |
Order of polynomial to fit
for -bmeth=1 |
I*2 int |
2 |
¤4.2.2 |
-bgrid |
Size of bgrid x bgrid for
partitioning frame and computing median pixel values for input into surface
fitting routine for bmeth=1 |
I*2 int |
9 |
¤4.2.2 |
-clsig |
Number (N) of robust sigma
to clip high tail from mode and replace with mode+N*sigma before partitioning
and fitting surface under bmeth=1 |
R*4 float |
0.5 |
¤4.2.2 |
-mcmprod |
Switch to generate
ancillary products for each MCM iteration: intensity and Correction Factor
Variance (CFV) images in internal cell grid frame |
Null |
0 |
¤9.1, ¤9.2 |
-odet |
Switch to perform outlier
detection |
Null |
1 |
¤6.1 |
-partition |
Switch to partition input
image list for outlier detection if number of input frames exceeds maximum
specified by <-nmaxodet>. In this
mode, -nx_odet and -ny_odet will
be reset to 1 |
Null |
1 |
¤6.2.3 |
-cpmsk |
Switch to copy frame masks
to <-outdir> and update with outlier detection results therein. Avoids
corrupting original input masks |
Null |
1 |
¤6.2.2 |
-coadd |
Switch to execute co-adder
and create co-add products |
Null |
1 |
¤3.2 |
-flxbias |
Invoke flux bias (ringing
suppression) processing for HiRes mode; only possible for -ncoad > 1;
0=>no, 1=>yes; |
I*2 int |
0 |
¤3.2, ¤9.4 |
-addbck |
Switch to add background to
HIRES'd products after first MCM processing pass under -flxbias mode |
Null |
0 |
¤9.4 |
-qa |
Switch to generate QA
metrics and plots on co-add products. Plots only generated in automated WISE
processing. |
Null |
1 |
¤11 |
-dbg |
Switch to generate debug
info. and diagnostic files from script-specific functions |
Null |
0 |
¤6.2.3 |
-sdbg |
Switch to also generate
debug info and diagnostic files from C-module executions |
Null |
0 |
¤6.2.1 |
-v |
Switch to increase
verbosity to stdout from script-specific functions |
Null |
0 |
generic |
-sv |
Switch to include verbosity
to stdout from C-module executions |
Null |
0 |
generic |
Table 1:
Command-line inputs and options
Below we list the assumptions pertaining to the format,
size, and content of the image inputs. Some recommendations on parameter usage
are also given. Many of these are sanity checked during early execution of framecoadder. If not satisfied, the program aborts with a message
and a non-zero exit status written to standard error.
SIMPLE =
T / file does conform to FITS standard
BITPIX =
-32 / number of bits per data pixel
NAXIS =
2 / number of data axes
NAXIS1 =
<Num> / length of data axis 1
NAXIS2 =
<Num> / length of data axis 2
CRPIX1 = <0.5*(Num + 1)> / reference
pixel for axis 1
CRPIX2 = <0.5*(Num + 1)> / reference
pixel for axis 2
CTYPE1 = 'RA---SIN'
/ projection type for axis 1
CTYPE2 =
'DEC--SIN' / projection type for axis 2
CDELT1 = -0.00019097222 / axis 1 scale
[deg/pix]
CDELT2 = 0.00019097222 / axis 2
scale [deg/pix]
FPALOCX =
508.0 / center x coord of grid square
FPALOCY =
711.2 / center y coord of grid square
|pa_coad * pc_coad - prf_CDELT| £ ct_coad (in arcsec). Therefore,
depending on the desired accuracy, it is wise to first pick an absolute output mosaic pixel scale (–pa_coad) and a
cell size factor (–pc_coad) before deriving PRF(s).
á The
FPALOCX and FPALOCY keywords in the PRF headers (see example header above) specify
the location, in the native X, Y
coordinate system of an input frame at which the PRF applies. This is for cases
where the PRF is non-isoplanatic (i.e., varies over the FPA). The values of
these keywords refer to the center coordinates of a square over which the PRF
applies. The specific square regions are defined beforehand by partitioning the
FPA into an n « n grid, with a PRF derived in each. The total number
of input PRFs is therefore n2.

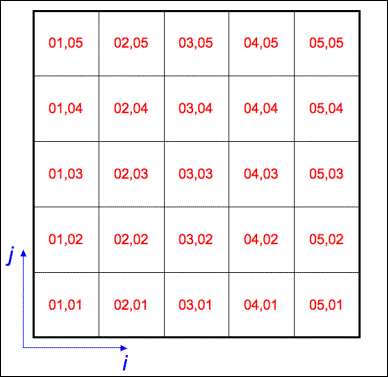

For a grid square labeled by integer coordinates (i, j)
where 1 £ i £ n and 1 £ j £ n (see Figure 2), it will have physical
center coordinates of:
where (NAXIS1f, NAXIS2f) refer to the dimensions
of an input image frame. So for example, a grid square located at partition (i,
j) = (03, 04) in a 5 « 5 grid (see Figure 2) will have in the PRF
header: FPALOCX = (1016/5)*(3 – 0.5) = 508.0, and FPALOCY = (1016/5)*(4
– 0.5) = 711.2. These keywords are used by AWAIC to match a specific PRF
from the input list to the pixel being processed.
á The
n « n PRF images, characteristic to the predefined grid
squares, are then supplied as an input list to AWAIC (parameter
–psflist). Note that only square grids are allowed, i.e., the number of
input PRF images must be a perfect square: 1, 4, 9, 16, 25 etc. Multiple input
PRFs are usually only needed if one is after accurate resolution enhancement
(input parameter –n_coad > 1). For simple co-addition (–n_coad =
1), it is sufficient to use one (averaged) PRF for the entire array. The author
has yet come across a detector whose PRF is highly variable to warrant using
several or more PRFs for co-addition.
á The
PRFs must be volume-normalized to unity. This is internally checked. The sum of
all PRF values in an input PRF image must not differ from unity by more than
1.0E-06. This tolerance is hard-coded.
á The
maximum linear footprint dimension supported by the image projection libraries
in AWAIC is 16¡.
However, one is likely to run out of memory first (depending on the output
pixel scales chosen) before the necessary arrays are allocated. The reason for
this maximum is that for dimensions exceeding this, the SIN and TAN projections
(the most common types) will give pixel scale distortions of >1% and >2%
respectively at the extremities relative to the footprint center.
á The
internal cell to output mosaic pixel
size ratio (command-line parameter –pc_coad) must be expressible in the
form 1/integer, where integer = 1, 2, 3É, and lie within the range: 0.2 £
pc_coad £
1.0. The lower limit is hard-coded.
á The
input value for –pa_coad must satisfy: 0.1*minrawscale £ pa_coad £ minrawscale, where minrawscale =
min[input_image_CDELT1, input_image_CDELT2] and the input_image_CDELTs are
pixel scales in the input raw images.
á The
output grid pixel scale for outlier detection, –pa_odet <in arcsec> must satisfy: minscale £ pa_odet £ maxscale, where minscale =
sqrt[MINAREAR*inp_image_CDELT1*inp_image_CDELT2]; maxscale = sqrt[inp_image_CDELT1*inp_image_CDELT2], and MINAREAR = 0.1. The inp_image_CDELTs are pixel
scales in the input intensity images. Therefore, the grid pixel scale is
constrained by the ratio of output/input pixel area.
á The
input pixel mask FITS images if specified, are expected to have a BITPIX=32
(i.e., 32-bit signed integer format). However, only the first 31 bits
(excluding the sign bit) are used in processing. Masks with BITPIX=16 or 8 or
even -32 (floating point) can still be stored. Only the integer part of the
float will be stored for input masks with BITPIX=-32.
á The
input fatal bit-string template specification for co-addition or HiResÕing: –m_coad allows one to
flag pixels according to certain conditions/criteria. The maximum value allowed
is 231 = 2147483647. If this value is specified, then all pixels
with values ³20
in the input masks will be omitted from co-addition or subsequent HiResÕing.
á There
is another input bit-string for tracking saturated pixels in input frames: –ms_coad [0 ² value ²
231]. This requires knowledge of which bits define saturation in the
input masks. This information is used to tag saturated locations with value
Ò100Ó in an output 8-bit mask with filename specified by –om_coad. Bad pixels
specified by the –m_coad
bit-string (see above) are also tagged in this mask and assigned value Ò1Ó. For
a stack of frames, non-zero values in the –om_coad mask imply that a saturated or bad
pixel occurred at least once at that sky location in the stack. This mask is
only generated for PRF-interpolated co-adds (–n_coad 1). Furthermore, if
the –ms_coad
saturation bit-string is specified, this must be included in the overall
bad-pixel bit-string specified by: –m_coad.

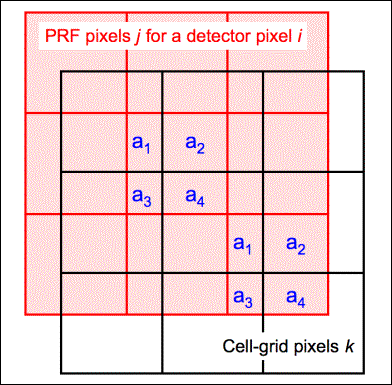

á The

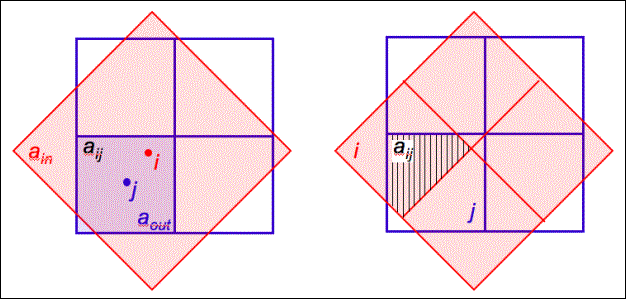

area-overlap weighting interpolation method (command-line option –if_coad
= 1) can only be invoked when (i) generating a PRF-weighted (–n_coad = 1)
co-add, and (ii) when no rotation
of the input PRF during re-projection is desired (command line option
–rf_coad = 0). The interpolation method will default to the Ònearest
neighborÓ method (–if_coad = 0) if either rotation of the PRF is
specified (–rf_coad = 1), or, resolution enhancement is desired (–n_coad
> 1).
á It
is recommended that the Ònearest neighborÓ method with rotation included (–if_coad
= 0 and –rf_coad = 1) be used when performing resolution enhancement.

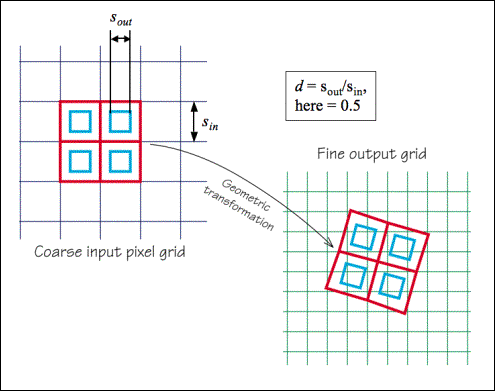

á If
Ònearest neighborÓ interpolation is used and the output mosaic pixel scale
(from –pa_coad) is not a fraction
expressible as (1/integer)*input
image pixel scale where integer = 1, 2, 3É, then systematic patterns in the output
depth-of-coverage map may result. These are normalized out of the intensity
images since there is an implicit division by the coverage at every location
(see formalism in ¤7). However, to minimize systematic variations in the coverage map when
nearest neighbor interpolation is used, it is advised that: (i) a new output
mosaic pixel scale be chosen that satisfies the (1/integer)*input image pixel scale criterion, and (ii) that the input PRFs are sampled
to a pixel scale £ 0.25 « input image pixel scale. If you
are adamant on using a specific output mosaic pixel scale, then the more robust
(but slower) area-overlap weighting PRF-interpolation method (–if_coad 1)
can be used.
á The
pixel units in the output intensity co-add (–o1_coad) and corresponding
uncertainty images (–o3_coad or –o4_coad or –o6_coad) reflect
the input image units and can be scaled using the –sf_coad <scale> parameter.
For example, if the input image units are in Data Number (DN or counts), one
may want to re-scale these according to pixel area so that the total counts in
a photometric aperture are conserved.
á Any
of the four major processing steps can be turned off/on using command line
switches: background (offset) matching: –bmatch; throughput (gain)
matching: –tmatch; co-addition or HiResÕing: –coad; quality
assurance: –qa. This functionality is useful for testing purposes.

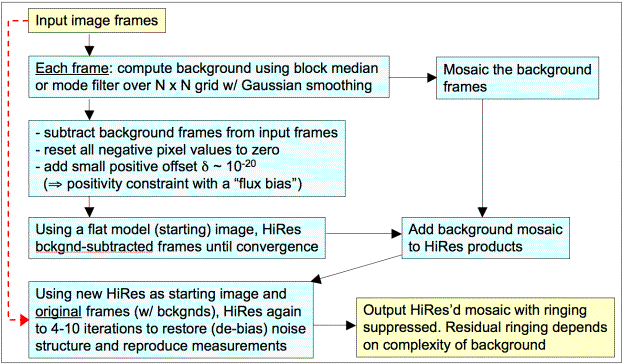

á The
–flxbias switch to support ringing suppression in HiRes (¤9.4) will also
need the –bmatch (background matching) switch specified in order to
trigger the extended structure detection algorithm (see ¤4.2). This special
processing allows the frame SVB to be replaced by a constant equal to the
minimum median background over all –svbgrid «
–svbgrid partitions of a frame if extended structure is detected through
the –ratmax parameter.
á If
the –mcmprod switch (for generating HiRes ancillary products) is
specified (¤9.1-9.2), you will also need to specify the –o5_coad and
–o6_coad output product filenames.
Figure 2: Example
of a 5 « 5 partition of
an input frame for defining FPA position-dependent PRFs with an indexing scheme
for computing the FPALOCX and FPALOCY keywords (see ¤3.2).
The first (optional) step is to scale the frame pixel values to a common
photometric zero-point using calibration zero-point information in each input
frame FITS header. This step is only necessary if the calibration zero-point
(i.e., the raw data units [e.g., DN] to absolute units [e.g., Jy] conversion
factor) varies amongst your input frames. This step can be controlled via the
–tmatch switch in framecoadder.
If the –tmatch switch is set, the software reads a zero-point in
magnitudes stored as the ÒMAGZPÓ keyword in each science frame FITS header
(e.g., as used in 2MASS and WISE image products). If throughput matching is
desired and this keyword is not present in the header, it can be derived using:
where Mtrue and Minst are the true and
instrumental magnitudes
of a calibrator source, DN
(Data Number) are the raw image pixel counts of the calibrator source from
photometry (with background subtraction), ftrue is its ÒtrueÓ flux density (e.g., Jy), f0 is the flux corresponding to magnitude
zero, and c = ftrue/DN = the ÒDN-to-[Jy]Ó conversion factor (or whatever absolute units are
involved). Some instruments (e.g., on Spitzer) only report values for c, in which case it would need to be converted
to some corresponding relative MAGZP as above.
LetÕs label the MAGZP in an input frame FITS header as magzpi. Given a common (or target) zero-point magzpc specified via –magzp <input>,
the pixels (pold) in frame i are
rescaled according to:
.
The same operation is performed on the input uncertainty frames if
specified.
The target zero point (magzpc) is then written to the FITS headers of
co-add image products as ÒMAGZPÓ. This enables the calibration of photometric
measurements off a co-add. Also, since this step modifies the input frame pixel
values (likewise for the background level-matching step described below), local
copies of the frames (intensities and uncertainties) and are made to avoid
overwriting the originals. The modified frames are created under the directory
specified by –outdir.
If uncertainties in the zero-points ÒMAGZPUNCÓ are also provided in the
input frame headers, they are median-combined to derive an effective MAGZPUNC
to accompany the co-add MAGZP. If these are null (Ò-999Ó or absent), the value
specified by input parameter –magzpun is used as the output coadd
MAGZPUNC.
Frame exposures taken at different times usually show variations in
background levels due to, for example, instrumental transients, changing
environments, scattered and stray light. The goal is to obtain seamless (and/or
smooth) transitions between frames near their overlap regions prior to
co-addition. We will want to equalize background levels from frame to frame,
but at the same time preserve natural background variations and structures as
much as possible. This step is only performed if the –bmatch is
specified. framecoadder implements the following two simple methods:
This method can be invoked by specifying Ò–bmeth 0Ó. Here are the
steps.
1.
Fit a robust plane to each frame.
By ÒrobustÓ, we mean immune to the presence of bright sources and extended
structure. Our goal is to capture the global underlying background level in a
frame. There are of course cases where structure may span over most of a frame,
and hence the background will be over-represented. The planar fit is
parameterized by z = f (x, y), where z is the background level and x, y are frame-pixel coordinates. We need at least three (x, y, z) values per frame to (exactly) fit a plane.
We choose the x, y to be
the centers of square partitions 72 x 72 pixels in size and z is the median in each. Seven different
partition configurations (of three x,y,z points) are used per frame. The coefficients across all seven fits are
then medianed to further ensure robustness of the planar fit.
2.
The robust planar fits are
subtracted from each respective frame. This effectively flattens the frames and
places them on a zero-baseline.
3.
Compute a global median M of all frame pixels contributing to the
co-add footprint.
4.
Add this global median M (a constant) to each of the Òzero-levelÓ
frames (from 2). The frames have now been matched to a common background level.
This will be more or less representative of the natural background over the
co-add footprint region.
Lien: an
alternative to computing a single global median (in 3) is to compute a Òmedian
planeÓ from all the planar fits, extend it over the footprint region and add it
self-consistently to each input frame. This will attempt to capture any natural
background gradient over the co-add footprint.
The above method also includes a method to ameliorate biases from the
possible presence of bright extended structure. Presence of extended structure
(e.g., a galaxy) over a frame is first searched for by thresholding on the
ratio of quantile differences in the pixel distribution of each input frame,
e.g.,
The minimum
threshold for this ratio above which bright extended structure is suspected in
a frame can be specified via –ratmax. Testing has revealed that values of
Qd >~ 2 [=
default] usually indicate a highly skewed distribution and hence contamination
from bright extended structure. If extended structure is detected in a frame,
the partition with the lowest median background value z (as defined
across all x,y
configurations in step 1 above) is used to represent the underlying frame
background. One can therefore force this mode (over planar fitting) by simply
setting a small a small Qd (–ratmax ) value, e.g., 0.5. This method still has its
limitations (e.g., if structure covers an entire frame), but it extends the
robustness of the algorithm. Figure 3 shows an example of the above method.

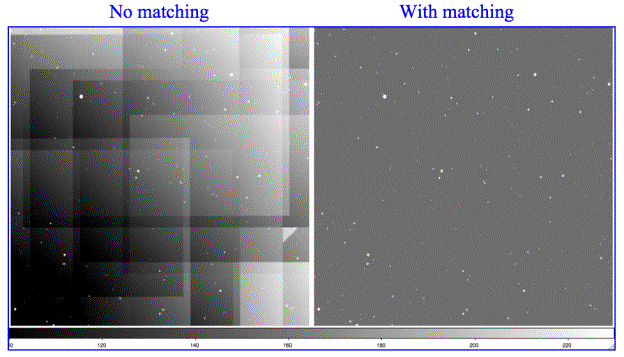

Figure 3: Left: co-add of WISE simulated frames spanning
~45′ before any background matching. Right: same co-add after background matching using
Method 1.
This method can be invoked by specifying Ò–bmeth 1Ó and is
generally preferred over the above method if tuned correctly. Here are the
steps.
1.
Regularize frame intensity pixels
by replacing values > clsig*s + mode with upper threshold value: Òclsig*s + modeÓ. Here clsig is the –clsig input parameter and s is a robust
measure of the frame sigma using the lower tail: median – 16th
percentile. This
replacement is known as winsorisation in the statistics literature. It reduces the impact of bright sources
and structure (outliers) on the surface fitting.
2.
Partition the regularized frame
into –bgrid x –bgrid squares (default = 9 x 9).
3.
Compute median (z) of pixels in each square partition with
grid centers: x, y.
4.
Fit a 2D polynomial: z = f(x,y) of order Ò–orderÓ (default = 2) to
regularized and median-partitioned frame. In general, a 2D polynomial of order N can be written:
,
where amn are the fit coefficients. The number of
coefficients is (N + 1)(N + 2)/2.
5.
Generate an image of the
polynomial fit and subtract from original input frame (after any throughput
matching of course – see ¤4.1)
6.
Compute global median M of all frame pixels contributing to the
co-add footprint and add to the background-subtracted frame in 5.
7.
Repeat steps 1 – 6 on all
input frames. The frames have now been matched to a common background level M. This will be more or less representative
of the natural background level over the co-add footprint region.
Note that like in
method 1, no attempt is made to preserve background variations (gradients)
spanning the full coadd footprint. Also, itÕs important to exercise caution on
using a too high order fit. The higher the order, the more likely real
astrophysical structure at higher spatial frequencies (or explained by the fit)
will be removed, especially if the outlier threshold (–clsig) is not
properly tuned. We recommend not going above order = 3. Order = 2 is safest if
youÕd like to retain contiguous extended structure and signal (e.g., a galaxy)
spanning <~ 40% of a frame by area, but only if the outlier threshold
–clsig has been tuned correctly.
The above methods ensure continuity of the background across the
footprint region after co-addition. This not only improves a co-addÕs esthetic
appearance (by minimizing frame level offsets between overlaps), but also makes
it self-consistent for scientific purposes. ItÕs important to note that
instrumental transients or improper instrumental calibration (e.g., bad
flat-fielding) can also manifest as gradients across frames. Therefore, one
needs to ensure that any retained global gradient is purely astrophysical.
A flowchart of the moon-contaminated frame flagging is shown in Figure 4. Here we expand on some of the details. This functionality is only enabled if a moon-frame metadata table is provided on input via the –moonmeta input and can be turned off/on via the –mflag parameter. The moon-frame metadata table is created upstream of wframecoadder and indicates which frames contain suspect moon-glow according to a moon-centric pixel mask in FITS format. This mask covers the whole sky and is made offline by thresholding on various pixel-variance metrics for all frames acquired in the mission. For completeness, this mask is further smoothed to fill in the fuzzy diffraction pattern-like regions. Examples for each WISE band can be found at: http://wise2.ipac.caltech.edu/proj/fmasci/mooning.html - premsk
The moon-metadata table (–moonmeta) is created by
transforming each frameÕs WCS pointing to the moon-mask frame-of-reference.
This determines if it falls in a ÒsuspectÓ moon-contamination region (tagged
ÒmoonÓ). An example (truncated) moon-metadata table is shown below. Note that this
table also reports other frame-rejection criteria (not shown here), e.g., bad
qa-scores from upstream processing and frames close to an anneal. These
criteria over-ride any suspect moon-glow tagging and are automatically rejected
from co-addition.
\nrecs
= 422
\w1nfrmoon
= 1
\w2nfrmoon
= 1
\w3nfrmoon
= 2
\w4nfrmoon
= 3
\nfrok
= 413
|frame_id
|w1type|w2type|w3type|w4type|n_rej| frame_dir
|
|
c |
c | c | c | c | i | c
|
|
| | | | | |
|
|
null | null | null |
null | null |null | null
|
01198b077 ok ok ok ok 0
/wise/fops/scans/8b/01198b/fr/077
01202a078 ok ok ok ok 0
/wise/fops/scans/2a/01202a/fr/078
01206b078 moon ok moon moon 0
/wise/fops/scans/6b/01206b/fr/078
01206b079 ok ok moon ok 0
/wise/fops/scans/6b/01206b/fr/079
01209a053 ok ok ok ok 0 /wise/fops/scans/9a/01209a/fr/053
01209a054 ok moon ok moon 0
/wise/fops/scans/9a/01209a/fr/054
01209a055 ok ok ok moon 0
/wise/fops/scans/9a/01209a/fr/055
etc for all input framesÉ
The frames indicated as containing moon-glow are actually
ÒsuspectÓ since many of them could still proceed downstream to the outlier
detection step for further filtering. Furthermore, the input (post-smoothed)
moon-masks could be aggressive and the existence of slight moon glow could not
be detrimental when combined with other good frames. This ensures that the S/N
is optimized in the final coadd. A blind rejection of all ÒsuspectÓ moon-glow
frames is likely to leave holes in the survey. The suspect moon frames tagged
in the moon-metadata table are therefore further filtered using robust spatial
metrics as follows.
We compute robust measures of the spatial pixel RMS for both
the suspect moon-masked frames and non-masked frames. The former is expected to
be larger than the latter due to the presence of (usually non-uniform) moon
glow. Note that elevations in background levels due to sptially uniform
moon-glow are not detrimental to co-addition. This is another reason for
post-filtering the suspect moon-glow frames. Simple elevations in background may
have been removed by the background-matching step (¤4.2) anyway. ItÕs the fast
variations that could cause problems. The distribution of RMSs for the
non-masked frames is assumed to be representative of the normal ÔgoodÕ frames
touching the coadd footprint, and serves as a benchmark against which the
moon-masked frames can be validated for genuine moon-glow (see below). The
robust RMS is computed using the median – 16th percentile of the pixel distribution in each frame.
As indicated in the third box down in Figure 4, we declare a
suspect moon-glow frame as containing significant and detrimental moon-glow if
itÕs RMS is greater than some threshold (parameter –nsig) of the RMS
distribution of normal good frames. If no normal (unmasked) frames were present
in the moon-metadata table, then both their median and spread in RMS are set to
zero so that all suspect moon-frames are declared as bad. This is a
conservative approach although it rarely happens since the moon-toggling
maneuver in the WISE survey causes a pile-up of frames (with ~2 – 3x
increase in depth-of-coverage) whenever the moon is near and unmasked frames
almost always trickle through. There are handful of cases however where all of
the input frames touching a footprint fall very close to the moon warranting
all of them being thrown out from further processing. Holes in the survey due
to severe moon-glow are therefore inevitable.
Once the genuine (or worst) moon-glow frames are identified, we build coarsely
sampled depth-of-coverage map using only these frames (e.g., 100 x 100 bins).
We also build a depth-of-coverage map including all frames (masked + unmasked +
not rejected for other reasons upstream). We then take the ratio of the
moon-only depth map to the total depth map to make a moon depth-fraction (or mdf) map. This is used in the next step to decide if the
moon-depth is overall too high for the pixel-outlier rejection step downstream
to operate reliably.
If the mdf is too
high, all the moon-glow frames (the post-filtered ÔgenuineÕ set) are rejected
from downstream processing. If not, they proceed to the outlier rejection step
for further dissemination at the pixel level. This process ensures that the
coadd S/N is maximized. In general, the pixel-outlier algorithm requires that
no more than ~50% of a pixel stack (after interpolation) be comprised of
outliers for them to be reliably detected and rejected (for details see ¤7).
Greater than this, then that becomes the ÔnormÕ for the coadd signal and no
outliers will be detected. Biases will then result in the final coadd.
Therefore, 50% is the breakdown point before we can be confident that outlier
rejection can deal with any remaining moon-contaminated pixels. Formally, all
moon-glow frames are rejected if the mdf exceeds some threshold –mfrac (default = 0.5) over a region
greater than some fraction of the footprint area –mpct (default = 0.001
or 10 mdf pixels for a 100 x 100
sampled grid).
As a detail, if these thresholds are not satisfied and
moon-contaminated frames do proceed to the pixel-outlier detection step, the
depth in any interpolated pixel stack needs to exceed a minimum specified by
parameter –odet_ns (default = 4) to have a fighting chance at being
reliably detected and rejected. Note that Òreliably detectedÓ is a relative and
fuzzy term since in general, the outlier detection is a noisy process when the
depth-of-coverage is low to moderately low, e.g., <~ 6. To avoid throwing
away many good pixels, no outlier detection whatsoever is performed if the
depth is £
4 (or that specified by odet_ns). Therefore, if any moon-contaminated frames
are passed onto the outlier detection step (after all the above post-filtering)
and the total depth is relatively low (e.g., <~ 6), itÕs possible to end up
with moon-contamination in a co-add. This will always be true if the depth is £ 4
since no outlier detection is performed as described.
All moon-glow frame filenames, i.e., those tagged as suspect
but retained, and those eventually rejected after post-filtering are written to
a log and an output summary table. All other frame rejection types are included
in this table. Suspect moon frames (but not explicitly rejected by
post-filtering) are assigned the mnemonic type ÒmoonÓ, while actual
moon-rejects are assigned ÒcomoonÓ in this table. The number of suspect-moon
and moon-rejected frames are written to the FITS headers of output products.
Furthermore, if the –qa switch is set, montages in JPEG format of only
the moon-rejected frames are generated under the directory specified by
–qadir.
Figure 4: processing
flow for rejecting moon-contaminated frames
The goal of outlier
detection is to identify frame pixel measurements of the same location on the
sky which appear inconsistent with the (bulk) remainder of the sample at that
location. This assumes multiple frame exposures of the same region of sky are
available. Potential outliers include cosmic rays, latents (image persistence),
instrumental artifacts (including bad pixels), poorly registered frames from gross
pointing errors, supernovae, asteroids, and basically anything that has moved
or varied appreciably with respect to the inertial sky over the observation
span of a set of overlapping frames. Outlier detection and flagging has been
implemented in the AWOD module (A WISE Outlier Detector), and is executed by
the framecoadder script if the –odet switch has been set.
In summary, the
method involves first projecting and interpolating each input frame onto a
common grid with user-specified pixel scale optimized for the detector's Point
Spread Function (PSF) size. The interpolation is performed using the
overlap-area weighting method (analogous to using a top hat kernel). This
accentuates and localizes the outliers for optimal detection (e.g., cosmic ray
spikes). When all frames have been interpolated, robust estimates of the first
and second moments are computed for each interpolated pixel stack j. We adopt the sample median (med), and the Median Absolute Deviation (MAD)
as a proxy for the dispersion:
where pi is the value of the ith interpolated pixel within stack j. The factor of 1.4826 is the correction
necessary for consistency with the standard deviation of a Normal distribution
in the large sample limit. The MAD estimator is relatively immune to the
presence of outliers where it exhibits a breakdown point of 50%, i.e., more
than half the measurements in a sample will need to be declared outliers before
the MAD gives an arbitrarily large error.
The final step
involves re-projecting and re-interpolating each input pixel again, but now
testing each for outlier status against other values in its stack using the
pre-computed robust metrics. A pixel with value pi is declared an outlier if for given ÒupperÓ
(uthres) and
ÒlowerÓ (lthres)
tail thresholds, either of the following is satisfied:
The uthres and lthres thresholds are specified by the –tu_odet
and –tl_odet command-line inputs to framecoadder respectively. If declared
an outlier, a bit is set (value specified by –m_odet) in the accompanying
frame mask (listed in –msklist) for use downstream. The algorithm also
includes an adaptive thresholding method in that if a pixel is likely to
contain ÒrealÓ signal (e.g., from a source), the upper threshold is automatically
inflated by a specified amount (–r_odet) to reduce the incidence of
outlier flagging at that location. To distinguish between what's real or not,
we generate a background subtracted median-SNR co-add
using all the input pixels. The background and local noise are computed using
spatial median filtering and quantile differencing: s È q0.5
- q0.16
respectively. The idea here is that since these metrics are relatively outlier
resistant, a large median pixel value in the co-add (or SNR derived therefrom)
is likely to contain signal associated with a source. Therefore, when flagging
outliers using Eq. 2, we also threshold on the co-add SNR (with minimum
tolerable value –ts_odet) to determine if uthres should be inflated by the factor
–r_odet. Details are given in ¤6.2.2.

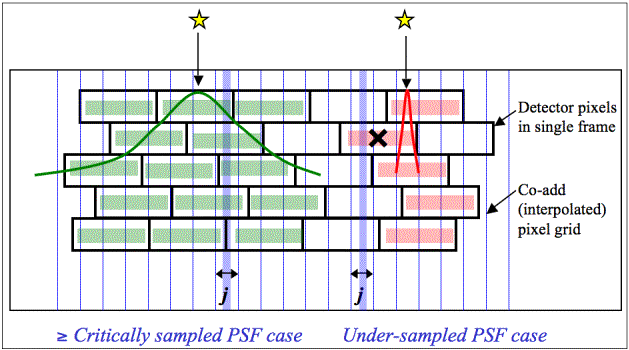

Figure 5:
one-dimensional schematic of stacking method for detecting outliers for well
sampled (left)
and under-sampled (right) cases. The input pixel marked Ò«Ó contains signal from a source and is in
danger of being flagged when outlier detection is performed at location j in the output grid.
We require
typically at least five samples (overlapping pixels) in a stack for the above
method to be reliable. This is because the MAD measure for s, even
though robust, can itself be noisy when the sample size is small. Simulations
show that for the MAD to achieve the same accuracy as the most optimal
estimator of s for a normal distribution (i.e., the sample
standard deviation),
the sample size
needs be È2.74« larger. A noisy s will adversely affect the ability to
perform reliable outlier detection. The minimum number of samples (or
depth-of-coverage) above which AWOD will attempt to test for outliers can be
specified by the –ns_odet parameter (default=5). This can be set to 4 as
the absolute minimum, but in general, we donÕt recommend going below 5 since
the above method becomes severely unreliable.
Another requirement
to ensure good reliability is to have good sampling of the instrumental PSF,
i.e., at the Nyquist rate or better. When well sampled, more detector pixels in
a stack can be made to align within the span of the PSF, and any pixel
variations due to PSF shape are minimized. On the other hand, a PSF which is
grossly under sampled can artificially increase the scatter in a stack, with the
consequence of erroneously flagging pixels containing true source signal.
Figure 5 illustrates these concepts.
Figure 6 shows the
Reliability and Completeness of outlier detection using stacks of simulated
WISE frames. The simulation contains point sources with PSF is sampled at the
Nyquist rate, Poisson noise spikes, and single cosmic-ray hits (outliers). For
depths of-coverage of eight or more, (where eight is the median depth for WISE
in the ecliptic plane), we expect to detect outliers to completeness and
reliability levels of >~80% for a nominal threshold of ~5s. Note that
the only source of ÒunreliabilityÓ in this simulation are noise spikes.
The purpose of this exercise was to check that the algorithm performs as
expected for different thresholds and depths-of-coverage.

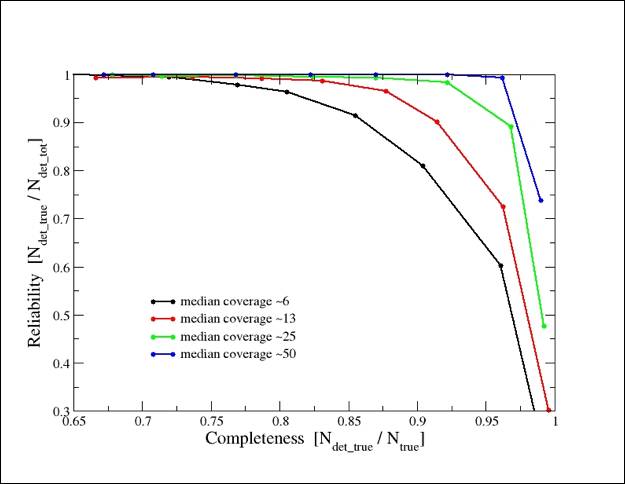

Figure 6: Reliability versus Completeness of outlier
detection for a simple WISE simulation. Results are shown for four median
depths-of-coverage. The dots on each curve going from right to left correspond
to detection thresholds of 3, 4, 5, 6, 7, 8, 9 and 10σ.
Above we gave a broad overview of the outlier detection step
and should suffice to get you going. Here we expand on some of the algorithmic
details. These parameters pertaining to outlier detection (execution of the
AWOD module) are suffixed by Ò_odetÓ in the framecoadder script. The processing flow is given in Figure 7.

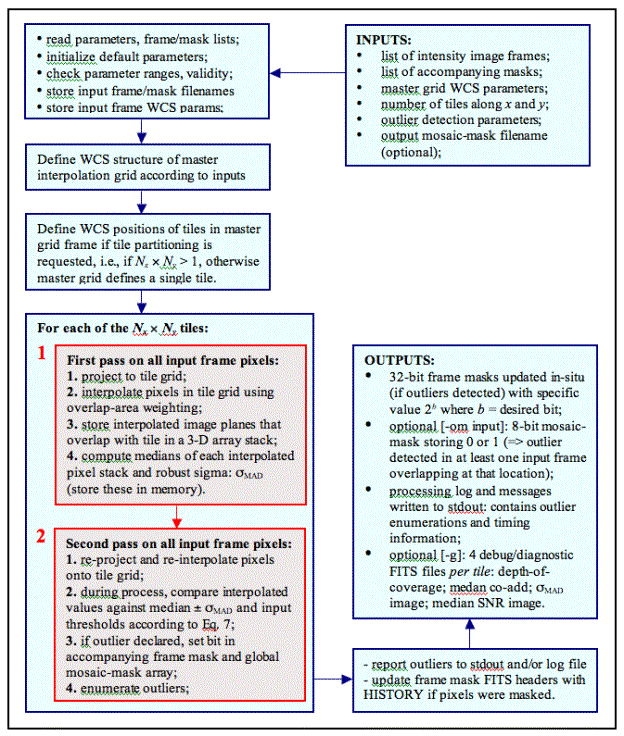

Figure 7:
Processing flow in AWOD (A WISE Outlier Detector). Red boxes represent the main
computational steps
First, the AWOD program sets up the WCS of the master
interpolation grid based on the input parameters: -sizeX, -sizeY, -ra, -dec,
-rot, -pa_odet, -pb_odet and other generic WCS keywords from the first listed
input frame. In absolute units (projected on the sky), the master grid for
outlier detection is slightly larger than the final co-add footprint by the
amount Òpb_odetÓ, where –pb_odet is an input parameter in arcsec (default=0). This parameter is additional padding
for the standard footprint defined by -sizeX, -sizeY, and is recommended to be
set to the PRF linear size if a PRF-interpolated co-add (or HiRes image) is
desired downstream. This is because the PRF-interpolation method for
co-addition will attempt to map information from outside the standard footprint
from a distance equal to half the PRF size. The Ò–pb_odetÓ padding
ensures that possible outliers lying just outside the desired footprint (but
within the detectorÕs PRF size) will not introduce artifacts on the co-add (or
HiResÕd image) near the boundary of the footprint.
The master grid can be further partitioned into Nx « Ny tiles (via the –nx_odet and –ny_odet
inputs). This is to assist with memory management when storing 3-D cubes of
interpolated image frames. If tiling is desired, then each tile is assigned its
own WCS with unique R.A., Dec, reference pixel coordinates, and rotation
(CROTA2) equal to that of the master grid. Each tile will define a ÒcommonÓ
interpolation grid for all input frames that overlap with it. If there is enough
system memory and partitioning is not desired (i.e., Nx « Ny = 1), then the ÒcommonÓ tile grid is the master grid
itself.
For each tile (or master grid for no tiling) there are two
passes through all the frame pixels [see two red boxes embedded in Figure 7].
The goal of the first pass is to compute robust (È outlier resistant)
measures of location and spread in all interpolated pixel stacks (e.g., the
median and sMAD). These products will be used in the second
processing pass to actually detect and flag outliers. We outline the specifics
of each step.
The first pass projects frame pixels using a fast
pixel-to-pixel WCS transformation library onto the interpolation grid. This
transformation also corrects for FOV distortion using the SIP FITS
representation. The interpolation uses the overlap-area weighting method to
compute the flux in the output grid pixels. In essence, this method involves
projecting the four corners of an input pixel directly onto the output grid
(with rotation included). Input/output pixel overlap areas are then computed
using a textbook algorithm for the area of a polygon, and then used as weights
when summing the contribution from the pixels of an input frame with signals Di. The signal in grid pixel j from frame k is given by:
where aikj
is the overlap area between pixel i
from input frame k with output
grid pixel j (see right schematic
in Figure 8).
The projection and interpolation is only performed for those
frames that overlap with the tile grid of interest. This overlap pre-filtering
is performed using a coarse method whereby an overlap is declared if the
separation between the centers of a tile and input frame is less than the sum
of the radii of circles that circumscribe the tile and frame. The interpolated
planes for each overlapping frame are stored in a 3-D cube.
The median is then computed for each interpolated pixel
stack j by first sorting the pixel
samples using the heapsort
algorithm. This uses the gsl_sort_float() routine from the GNU Scientific Library. The median is computed as
the 50th percentile of the sorted stack, and we account for even
numbered samples. We also compute a robust measure of the dispersion. For speed
and efficiency, we use an approximation to the actual sMAD defined by Eq. 1 and call it the pseudo-MAD. This
approximation works directly off a sorted array by selecting the appropriate
indices. We define the pseudo-MAD as follows, where k = 0, 1, 2, 3,ÉN is the sample number in a sorted pixel stack, stack[k], at
location j in the interpolation
grid.
where the factor 1.482É is the correction to ensure
Normality in the large sample limit. The array indices are rounded down to the
nearest integer. The depth-of-coverage N
(number of samples in a stack) must satisfy N ³ ns_odet (default=5). If N < ns_odet, the sMADj value is set to the hard-coded ÒflagÓ value -10000
so it can be detected and avoided downstream.
There is an option to smooth the sMADj image values using spatial median filtering. This is
only performed if Ò–b_odet 1Ó is specified on the command-line. The
default is to perform no median filtering. If requested, the window side-length
of the median filter (in odd number of grid pixels) can be specified by
–w_odet (default=3). The reason for smoothing the sMADj image is to avoid using erroneous (usually
underestimated) values of sMADj when the depth-of-coverage is low, i.e., N <~ 10. As mentioned above, sMADj itself is not an efficient estimator of scale for
small samples. Smoothing replaces each value with a median of the neighborhood,
and this is expected to be more-or-less representative of the Òtrue dispersionÓ
in the stack at each location. If for example, the sMADj values happen to be underestimated in some regions
(due to their noisy nature), this will bias flux thresholds (medj ± tsMADj ) towards low values and hence inadvertently flag
Ògood samplesÓ as outliers. There is also an option to scale the post-filtered sMADj values with a factor specified by –s_odet
(default = 1.5). This allows the user to scale the sMADj values for each stack for consistency with expected
RMS fluctuations in an image (Gaussian or otherwise). This enables one to set
thresholds according to a prior measured image RMS, rather than the pseudo-MAD in
pixel stacks that may be subject to under-sampling and other systematics.
AWOD includes an adaptive thresholding method in that if it
encounters a pixel thatÕs likely to be associated with a ÒrealÓ signal (e.g., a
source), then the upper and lower thresholds are automatically inflated by a
specified amount to avoid (or reduce the incidence of) flagging such sources as
outliers in the second pass (see ¤6.2.2). To distinguish between whatÕs real or
not, we compute a Òmedian SNRÓ image corresponding to the interpolated pixels j. This is computed using:
The first term in the numerator is the median signal for
pixel stack j, and the second term is a global background measure. This background is computed as
the median signal over all stack medians such that their depth-of-coverage Nj is equal to the median depth over the entire tile grid. The denominator is an
estimate of the spatial RMS fluctuation for pixel stacks at the median
depth-of-coverage, relative to their median signal (the base RMS), and then
appropriately rescaled to represent the pseudo-local RMS at any depth Nj (third line in Eq. 5). More precisely, the base RMS
is computed using the lower tail values of the pixel distribution to avoid
being biased by sources and other Òspatial outliersÓ. The 16th
percentile (or more exactly, the quantile corresponding to a lower-tail
probability of 0.1586) is used, analogous to the standard deviation of a Normal
distribution, which can also be derived from quantiles: s
= m
– q0.1586 = 0.5*(q0.8413 – q0.1586). The local SNR computed this way
is an approximation and assumes the background does not vary wildly. The SNR
image (Eq. 5) is used for regularizing the sMADj image (see next paraegraph) and as a proxy to
determine if a location contains real source signal to assist the outlier
flagging process (see 2nd pass below).
AWOD has an option to regularize (or homogenize) the sMADj values where they are too low relative to their
overall neighboring values, or too high in regions below some minimum SNR
(using the median SNR image described above). This regularization occurs before any local
smoothing of the sMADj
values through the –b_odet parameter described above. It ensures global
robustness and stability of sMADj values against wild frame backgrounds (e.g., that
may have not been properly background matched) or noisy regions where the
depth-of-coverage (stack sample size) is low, causing the sMADj themselves to be noisy and unreliable for outlier
detection. This operation is only performed if Ò–odet_h 1Ó is specified.
In general, the homogenization process involves replacing sMADj values with their global median over the tile (or
footprint) if the following criteria are satisfied:
where the parameters nthres and SNRmin are the command-line inputs: –q_odet and
–k_odet respectively. sspatial is a robust estimator of the global (spatial)
variation in sMADj:
median – 16th percentile.
At the end of first pass computations, we have three image
products stored in memory for a tile grid: median, pseudo-MAD (sMAD), and a SNR image. These are needed for the second
pass. If the debug switch (–sdbg) is set, these three images and the
depth-of-coverage map are saved to files in FITS format in the execution
directory.
Given the robust metrics from the first pass, we now
re-project (with distortion correction) and re-interpolate all the input frame
pixels onto the tile grid again. The only difference here is that as each pixel
from the kth input frame is
projected, it is compared to the existing median, sMAD
and SNR values at the same pixel location j in the tile grid to determine if it is an outlier.
In general, an interpolated pixel from frame k, fjk (Eq. 3) is declared an outlier with respect to other pixels in stack j if its value satisfies:
where the parameters uthres, lthres, r,
and SNRmin correspond
to the command-line inputs: –tu_odet, –tl_odet, –r_odet, and
–ts_odet respectively. This is a refinement to Eq. 2. The addition here
is that the upper-tail threshold, uthres is inflated by the factor r if the median SNR in pixel j exceeds some SNRmin of interest. The median is relatively immune to outliers (as long as
they donÕt contaminate ³50% of the sample),
therefore, if the median is relatively large, itÕs likely that the pixel
contains ÒrealÓ source signal. The inflation factor r (–r_odet) can be set to some arbitrarily large
value to avoid masking at locations where SNR > SNRmin (–ts _odet). An example where one may want to
invoke this is with undersampled data (see Figure 5).
If an input pixel from frame k leads to an outlier in the interpolated space of some tile, then a
bit-value is set in itÕs accompanying mask image. The mask value is specified
by the command-line input: –m_odet <2b value>,
where b is the required bit. The
default Ò–m_odet 0Ó means no
mask updating. This could be useful if running a test to get an idea of the
outlier count for threshold tuning purposes. To avoid updating (and possibly
corrupting) the original input masks with outlier information, it is strongly
recommended that you specify the –cpmsk command-line switch so that the original masks are copied into the local
processing directory –outdir before ÒdestructivelyÓ updating them.
In addition to updating the input masks, a value Ò1Ó is also
written to an output mask array at the appropriate WCS location with the same
dimensions as the master interpolation grid. This is only performed if an
output FITS filename: –om_odet <outfname> was specified. This product is also referred to as an outlier
map in this document. This map indicates that an outlier was detected in at least one of the frame pixels in the stack at that
location on the sky.
Another detail in second pass processing is estimating the
interpolated pixel flux fjk.
This can be either done ÒexactlyÓ using the area-overlap method (e.g., Eq. 3),
or approximately using nearest-neighbor interpolation. The approximate method
was implemented for speed, and its accuracy depends on the ratio of output-to-input
pixel area, aj / ai. The value at which the nearest-neighbor method kicks in can be
controlled by the –ta_odet <max out/in> parameter. This threshold represents the maximum
ratio of output-to-input pixel area below which the nearest neighbor method is
used. Above this threshold, the exact polygonal area-overlap method is
triggered (Eq. 3). The default value for –ta_odet is 0.25, i.e., if an
output pixel occupies a quarter of an input pixel or less by area (i.e., aj
/ai £
0.25), then the overlap will start to be appreciable (left schematic in Figure
8). The smaller this ratio, more output pixels will overlap entirely with an input pixel. In this case, the output pixel
thatÕs nearest to the projected input pixelÕs location will be assigned a
signal fj È (aj
/ ai)Di in interpolated space.
If however aj /ai > 0.25, it is less likely that an input pixel will entirely overlap an output
pixel (right schematic in Figure 8). In this case, all four corners of the
input pixel need to be projected to compute the exact overlap area enclosed by
a polygon. This is more time-consuming, but it uses less system memory in the
end. If the ratio of output-to-input pixel area is >~ 0.25, then the exact
overlap-area method is strongly recommended to ensure the best interpolation
accuracy and representation of input pixels. Unless execution time is critical,
we advise keeping Ò–ta_odet 0.25Ó (the default). If the nearest neighbor
method is forced when the output/input pixel areas are really > 0.25, the
variance in interpolated pixel stacks will be inflated. To compensate, youÕll
need to inflate the thresholds for outlier detection (–tl_odet and
–tu_odet), otherwise you may end up flagging many genuine input pixels as
outliers.
Figure 8: Left: schematic where aout/ain
<~ 0.25 with overlap area aij È aout.
Here the nearest neighbor to output pixel j is input pixel i. Right: schematic where aout/ain = 1 and the
overlap area aij (shaded polygon) is formally computed.
At the end of second pass processing, outlier pixels are
enumerated per frame and reported to
standard output. ItÕs important to note that these enumerations may contain
duplicates if partitioning of the master grid into tiles was specified (i.e.,
with –nx_odet > 1 and/or –ny_odet > 1). This is because each
tile is padded with additional pixels to avoid incomplete representation of
input pixels near tile boundaries after projection. Duplicates in the reported
outlier enumerations will never occur in single-tile mode (–nx 1 and
–ny 1), assuming one has sufficient memory to run in this mode. In the
end, the total number of outliers detected per frame can be inferred by
counting the number of pixels in the mask images updated with the outlier-bit.
Average and median statistics on the number of outliers detected per frame are
also reported in the output QA meta-data table (–qameta <outfilename>).
The wframecoadder script includes an option
to manage memory usage for outlier detection. This can be exercised by setting
the Ò–partitionÓ switch. Here the input image (and accompanying mask)
list is partitioned if the number of input images exceeds a maximum specified
by –nmaxodet. The number of tiles along x and y (–nx_odet and –ny_odet) are then reset to 1. In brief, the input
image (and mask) files are first randomized to ensure the final partitioned
lists contain images that more-or-less randomly (and uniformly) sample the
footprint depth-of-coverage. This is because the input lists could already be
ordered according to sky location for example and hence a serial partition
thereof will not sample the whole footprint. Next, the optimum number of images
per partition Nopt is computed by recursively halving the number of inputs Ntot until floor(Nopt) ² Nmax (where –nmaxodet < Nmax>) is satisfied. The input images are then segregated
into Òfloor[(Ntot/Nopt) – 1]Ó sublists, each containing Nopt images. The remaining ÒNtot – Nopt floor[(Ntot/Nopt) – 1]Ó images are then added to
another sublist. So for example, if Ntot = 161 and Nmax = 150, there will be two sublists, each
containing 80 and 81 images. AWOD is then executed on each sublist k and outlier image maps are generated for
each run in the format: <basename_sublistk.fits>
where basename is read
from the input specification: –om_odet <basename>. All ÒsublistÓ outlier maps are
combined at the end to generate a single overall map with filename specified by
–om_odet <basename>.
Another feature in the outlier detection step is an option
to ÒexpandÓ outlier-masked pixels initially found above to ensure more complete masking of partially masked regions. This
may occur from latent (image persistence) artifacts, moving objects, and/or
other outlier ÒfuzziesÓ whose cores may only have been completely flagged. This
post-processing is only triggered if the –expodet switch is set. The
masks (residing in –outdir if –cpmsk was specified) are updated
with additional outliers. The number of additional outliers is also written to
standard output. The input parameters controlling this step are: –nei_odet,
–nsz_odet, and –exp_odet. In brief, if a frame pixel was tagged as
an outlier upstream and if a region of size Ònsz_odet «
nsz_odetÓ centered on it contains > nei_odet additional outliers (where
nei_odet £
nsz_odet «
nsz_odet), outlier expansion will be triggered around all outliers in this
region. This entails blanketing Òexp_odet « exp_odetÓ pixels around
each outlier into more outliers (with bit specified by –m_odet in the
mask). Figure 9 illustrates the mechanism. If the –dbg switch is set,
residual FITS image masks of Ònew (outlier expanded) mask – input maskÓ
are generated.

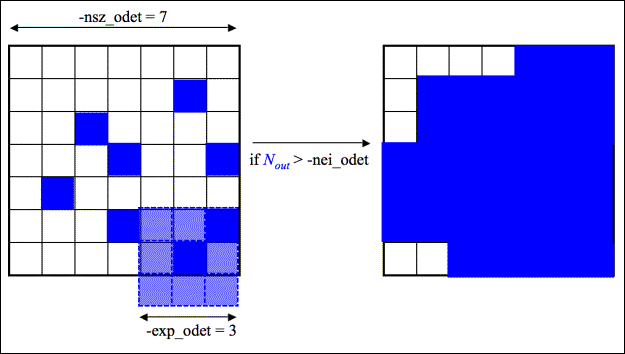

Figure 9: Schematic of outlier expansion method described
in ¤6.2.3. Nout is the
number of outliers initially detected within the region Ònsz_odet «
nsz_odetÓ. If this number exceeds the user-specified threshold Ò-nei_odetÓ, an
additional Òexp_odet « exp_odet – 1Ó outliers will be tagged
around each pre-existing outlier. On the right is the final blanketed region
for this example.
Since outlier detection is the most memory intensive task,
memory usage can be further reduced by invoking 2-byte integer storage and
arithmetic when computing the stack estimators. This can be invoked by
specifying: Ò–ip_odet 1Ó (where default = 0 Þ
use 4-byte floating point). If specified, the floating-point values of interpolated pixels pf from each 2-D frame are transformed into the 2-byte
dynamic range: -215 £ pi £ 215 – 1 (-32768
£
pi £ 32767)
using a scaled log transformation:
,
where pf
> 0 and scale is a scaling
factor specified by the –is_odet input parameter. This parameter has
default value 2000.0 and is tuned for WISE data. For the general case, the
scale factor can be tuned such that it approximately satisfies:
,
where max(pf)
is the expected (approximate) maximum value of an interpolated pixel (or some percentile in the high-tail of the
interpolated pixel distribution). This can be estimated from the typical
maximum value of an input frame pixel multiplied by the interpolation factor: output_pixel_area/input_pixel_area ~ (pa_odet*pa_odet)/(x_scal*y_scal) where pa_odet is the
pixel scale of the output interpolation grid (parameter: –pa_odet) and x_scal*y_scal is the input frame pixel area. If finding a suitable
scale factor proves difficult, we suggest using the default floating-point
processing (–is_odet 0).
To further ensure coadd quality and optimize S/N, the wframecoadder script includes an option to reject entire frames
from co-addition based on the number of ÒbadÓ pixels tagged upstream. The
various flavors of bad pixels enumerated per frame, examples of possible
causes, their default maximum tolerable numbers above which a frame will be
rejected if any are exceeded, and input parameters defining these are
summarized in Table 2. Note that the maximum possible thresholds are the number
of pixels in each frame: 1016 x 1016 (= 1032256) pixels in w1, w2, w3 and 508 x
508 (= 258064) pixels in w4. Given that the current –tg_odet threshold
(for the number of spike pixel outliers) exceeds the number of frame pixels in
all bands, there is no frame rejection based on this flavor of bad pixel.
Bad pixel type
searched |
Examples |
Parameter
threshold |
Default
thresholds for w1 – w4 [#pixels] |
Temporal outliers using
pixel-stack statistics from AWOD. Includes spatially expanded outliers as
described in ¤6.2.3. Note: there is no temporal outlier detection for
depths-of-coverage £ 4 |
Moon glow; moving objects
and heavy streaking from satellite trails; high cosmic ray count from SAA;
other glitches; bad pointing solution; latents and diffraction spike smearing
at high ecliptic latitudes |
-tn_odet: threshold for max tolerable number of temporal
outliers per frame above which entire frame will be omitted from co-addition |
200000, 200000, 150000, 35000 |
Spike or hard-edged pixel
glitches/outliers detected using median filtering in ICal pipeline. Includes
hi and lo spikes. Mask bit-string param. for specifying glitch pixels is
–mg_odet |
Heavy cosmic-ray hit rate,
e.g., from SAA; solar storms; excessive popcorn-like noise |
-tg_odet: threshold for max tolerable number of spike-glitch
pixels per frame above which entire frame will be omitted from co-addition |
(big values => turned
off) 1500000, 1500000, 1500000, 650000 |
Saturated pixels from
saturation tagging in ICal pipeline (in any SUTR). Mask bit-string param. for
specifying saturated pixels is –ms_coad |
Warm transient behavior;
anneals (if not explicitly filtered upstream); super-saturating sources |
-tsat_odet: Threshold for max tolerable number of saturated
pixels per frame above which entire frame will be omitted from co-addition |
412000, 412000, 412000, 103000 |
Table 2:
Frame-outlier rejection criteria
The filenames of all rejected frames from the above
operation are written to a log and listed in an output summary table (in the
same table listing rejected moon-masked frames [¤5] and given the mnemonic type
ÒcoaddÓ). Furthermore, if the –qa switch is set, montages of rejected
intensity frames and masks in JPEG format are generated under the directory
specified by –qadir.
One of the interpolation methods in AWAIC involves using the detector's Point Response Function (PRF) as the interpolation kernel. The PRF is simply the instrumental PSF convolved with the pixel response. When knowledge of the intra-pixel responsivity is absent, the pixel response is assumed to be uniform, i.e., a top hat. The PRF is what one usually measures off an image using the profiles of point sources. Each pixel can be thought as collecting light from its vicinity with an efficiency described by the PRF.
The PRF can be used to estimate the flux at any point in space as follows. In general, the flux in an output pixel j is estimated by combining the input detector pixel measurements Di using PRF-weighted averaging:
where rij is the value of the PRF from input pixel i at the location of output pixel j. The rij are volume normalized to unity, i.e., for each i, ·j rij = 1. This will ensure flux is conserved. The inverse-variance weights (1/si2) are optional and default to 1 (parameter –wf_coad). The si can be fed into AWAIC as 1-s uncertainty frames, e.g., as propagated from a prior noise model. The sums in Eq. 7 are over all input pixels in all input frames. Eq. 7 represents the intensity image of a ÒPRF-interpolatedÓ co-add (invoked with Ò–n_coad 1Ó and written to output: –o1_coad). With multiple overlapping input frames, this will result in a co-add. The 1-s uncertainty in the co-add pixel flux fj, as derived from Eq. 7 is given by
where wij = (rij/si2) / ·i rij/si2. Equation 8 assumes the measurement errors (in the Di) are uncorrelated. Note that this represents the co-add flux uncertainty based on priors (output is specified by –o3_coad). With Nf overlapping input frames and assuming si = constant throughout, it's not difficult to show that Eq. 8 scales as: sj ~ si / …(NfPj), where Pj = 1 / ·i rij2 is a characteristic of the detector's PRF, usually referred to as the effective number of Ònoise pixelsÓ. This scaling also assumes that the PRF is isoplanatic (has fixed shape over the focal plane) so that Pj = constant. Furthermore, the depth-of-coverage at co-add pixel j (output –o2_coad) is given by the sum of all overlapping PRF contributions at that location: Nj = ·i rij. This effectively indicates how many times a point on the sky was visited by the PRF of a ÒgoodÓ detector pixel i, i.e., not rejected due to prior-masking. If no input pixels were masked, this reduces to the number of frame overlaps, Nf.
In general, the PRF is usually non-isoplanatic, especially for large detector arrays. AWAIC allows for a list of spatially varying PRFs to be specified (via –psflist), where each PRF corresponds to some pre-determined region (e.g., a partition of a square grid) on the detector focal plane.
Figure 10 shows a schematic of a detector PRF mapped onto the co-add output grid. The PRF boundary is shown as the dashed circle and is centered on the detector pixel. To ensure accurate mapping of PRF pixels and interpolation onto the co-add grid, a finer cell-grid composed of Òpixel cellsÓ is set up internally. The cell size can be selected according to the accuracy to which the PRF can be positioned. The PRF is subject to thermal fluctuations in the optical system as well as pointing errors if multiple frames are being combined. Therefore, it does not make sense to have a cell-grid finer than the measured positional accuracy of the PRF. The cell pixel linear size is given by the parameter product: Òpc_coad*pa_coadÓ (arcsec) and is constructed such that it also equals the input PRF pixel size to within some tolerance specified by –ct_coad (default = 0.0001 arcsec; see also ¤3.2 for specification details).

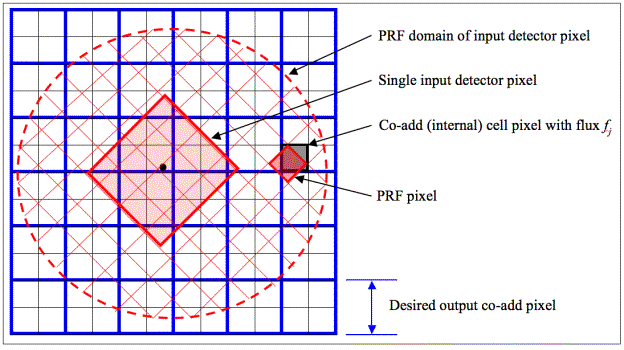

Figure 10:
Schematic of PRF interpolation for a single input pixel.
The PRF pixels are mapped onto the cell-grid frame by first projecting the center of the detector pixel with distortion correction if necessary, and then using a local transformation with rotation to determine the positions of the PRF pixels in the cell-grid:
,
where (Px, Py) is a PRF pixel coordinate, (P0x,
P0y) center-pixel
coordinates of the PRF, (Dx, Dy) are the detector pixel coordinates in the cell-grid
frame, and the outputs (Cx, Cy) are the coordinates of the PRF pixel in the cell-grid
frame. q
is the rotation of the input image with respect to the co-add (footprint)
frame. Rotation of the input PRFs can be turned on/off using the –rf_coad
option, where Ò–rf_coad 0Ó implies no rotation and we explicity set q
= 0. Turning this off can significantly speed up processing and should suffice
for PRF-interpolated co-adds. For HiResÕd products however (which use the same
interpolation scheme), we recommend that PRF rotation be invoked (with
Ò–rf_coad 1Ó), unless of coarse the input PRFs are sufficiently
axisymmetric. ÒNearest-neighborÓ interpolation then entails rounding the output
coordinates (Cx, Cy)
to the nearest integer pixel. Note that if the input PRFs are too coarsely
sampled, then systematic variations may result in the output products (see ¤3.2
for details on how to alleviate this).
The value of a PRF-weighted detector pixel flux rijDi in a co-add cell pixel j can then computed using either a nearest-neighbor
match (–if _coad 0), or, an overlap-area weighting method with
no rotation of input detector PRF-to-cell
grid (–if _coad 1). The latter is more accurate but slower. The nearest
neighbor method should suffice for most purposes. Under the overlap-area
PRF-interpolation scheme (–if _coad 1), the contribution from an input
PRF pixel (for a given detector pixel) is apportioned, by area, to its four
neighboring cell pixels. A schematic is shown in Figure 11. Given overlap areas
aijk between a PRF
pixel j (from detector pixel i) and four neighboring cell pixels k of the same size, Eq. 7 for output cell pixel flux is replaced by:
ItÕs important to note that the PRF transformed in this
manner (regardless of interpolation method) does not use the full non-linear WCS transformation from input image to co-add frame.
For large co-add footprints (linear extent >~ 16¡),
there could be an inaccurate representation of the PRF flux distribution towards the footprint edges - a consequence of
projection off a sphere. After all the input pixels with their PRFs have been mapped,
the internal co-add cells are down-sampled to the desired output co-add pixel
sizes (–pa_coad).
Figure 11: Schematic of PRF pixel-to-cell grid
interpolation using area-overlap weighting. Four neighboring cell pixels are
incremented in proportion to the PRF pixel overlap areas.
There are three advantages to using the PRF as an interpolation kernel.
First, it reduces the impact of masked (missing) input pixels if the data are
well sampled, even close to Nyquist. This is because the PRF tails of
neighboring ÒgoodÓ pixels can overlap and stretch into the bad pixel locations
to effectively give a non-zero coverage and signal there in the co-add. Second,
Eqs 7 and 8 can be used to define a linear matched filter optimized for point
source detection. This effectively represents a cross-covariance of a point
source template (the PRF) with the input data. It leads to smoothing of the
high-frequency noise without affecting the point source signal sought. In other
words, the SNR per pixel in the co-add is maximized for detecting point source
peaks. The inclusion of inverse-variance weighting further ensures that the SNR
is maximized since it implies the co-add fluxes will be maximum likelihood
estimates for normally distributed data. The third advantage is that the PRF
allows for resolution enhancement by ÒdeconvolvingÓ its effects from the input
data (see ¤9).
Use of the PRF as an interpolation kernel also has its pitfalls, at
least for the process of co-add generation. The operation defined by Eq. 7
leads to a ÒsmoothingÓ of the input data in the co-add grid. This smoothing is
minimized for a top-hat PRF spanning one detector pixel (equivalent to
overlap-area weighting). This leads to smearing of the input pixel signals and
one consequence is that cosmic rays can masquerade as point sources (albeit
with narrower width) if not properly masked. For point sources with Gaussian
profiles, their effective width will increase by a factor of ~Ã2. Furthermore,
a broad kernel will cause the noise to be spatially correlated in the co-add,
typically on scales (correlation lengths) approaching the PRF size.
Correlations are minimized for top-hat kernels. Both the effects of flux
smearing and correlated noise must be accounted for in photometric measurements
off the co-add, both in profile fitting and aperture photometry. The
compensation for flux smearing can be handled through an appropriate aperture
correction. Ignorance of correlated noise will cause photometric uncertainties to
be underestimated. Methods on how to account for correlated noise in photometry
are discussed in Masci et al. (2010).
Equation 7 can be compared to the popular pixel overlap-area weighting
method, e.g., as implemented in the Montage and MOPEX tools. In fact if the PSF is grossly
under-sampled, then the PRF is effectively a top hat spanning one detector
pixel. The interpolation as described above then reduces to overlap-area
weighted averaging where the interpolation weights rij become the input(i)-to-output(j)
pixel overlap areas aij. AWAIC also implements the overlap-area weighting method for
co-addition, in case detector PRFs are not available. This can be invoked by
specifying Ò–sc_coad 1Ó.
In essence, this method involves projecting the four corners
of an input frame pixel directly onto the output co-add grid using the full WCS
transformation with distortion correction if applicable. Input/output pixel
overlap areas are computed using a formula for the area of a polygon and then
used as weights when summing the contribution from all input detector pixels
with signals Di. The signal
in co-add pixel j (written to
output: –o1_coad) is given by:
where the inverse variance weighting (1/si2) is optional and can be turned on/off using the –wf_coad parameter. Uncertainties based on priors, analogous to Eq. 8 are also generated (output: –o3_coad).
An additional product that can only be generated for overlap-area weighting is an image of the standard-deviation of the input pixel stacks divided by the square-root of the depth-of-coverage at each location. This represents an alternative measure of the uncertainty in a co-add pixel and is generated if the –o4_coad output filename is supplied. In general, the variance in a pixel stack at location j can be written:
where Nj
is the depth-of-coverage and the pre-factor Nj / (Nj - 1) is the correction to convert the sample
variance to an unbiased estimate of the population variance. The angled
brackets denote area-weighted averages of all the input detector pixel signals
overlapping with co-add pixel j.
The uncertainty in the co-add signal fj is then given by
.
Using the above expressions, where <Di>j ¼ fj is
given by Eq. 10, the uncertainty can be written:
This is only computed for pixels where Nj > 1, otherwise sSDj = 0 is written to the output
(–o4_coad) image. In general, estimates from Eq. 11 are expected
to be larger than those estimated using priors (analogous to Eq. 8). This is
because many more sources of error can contribute to the dispersion in a pixel
stack, e.g., under-sampling of PSFs (even close to critical), pointing and
registration errors, and temporal variations in detector/instrumental
signatures.
An added feature tied of the overlap-area interpolation
method is a ÒdrizzleÓ option, which has its roots in construction of the Hubble
Deep Field images from HST. It has the advantage of minimizing the degree of
correlated noise in a co-add and can also improve the spatial resolution if the
depth-of-coverage is appreciable, especially for undersampled data. Drizzling
can be invoked by specifying a value 0 £ d < 1 for the linear drizzle factor parameter: –d_coad <d> where d = new pixel scale (or drop size) / input (native) pixel scale. I.e., the input pixel area is shrunk by a factor of d2 before proceeding with overlap-area
interpolation onto the output grid (see Figure 12). This parameter has a
default of 1 and implies the entire input pixels are mapped onto the output
grid with no shrinkage.
Note that if the drizzle factor d is too small, one may end up with holes (gaps) in
the output co-add if there is insufficient depth-of-coverage. We recommend choosing
a pixel drop size (d*input native scale) that is small enough to minimize degradation of the output image, but
large enough that after all frames have been projected, the coverage is still
fairly uniform. For randomly dithered input frames, a conservative approach is to attempt drizzling only if
the overall depth-of-coverage is Nf > 10 and setting d È 1.7/…Nf .
Figure 12: Schematic showing definition of linear drizzle
factor d (framecoadder parameter
–d_coad). Base figure adapted from: http://www-int.stsci.edu/~fruchter/dither/drizzle.html
We now describe a generic framework for co-addition that includes resolution enhancement (HiRes). Above we referred to the concept of combining frames to create a co-add. The HiRes problem asks the reverse: what model or representation of the sky propagates through the measurement process to yield the observations within measurement error? As a reminder, the measurement process is a filtering operation performed by the instrument's PRF:
The P symbol represents an individual pixelÕs response, usually assumed to be uniform (top-hat). Our goal is to infer a plausible model of the sky or ÒtruthÓ given the instrumental effects.
The HiRes algorithm in AWAIC is based on the Maximum Correlation Method (MCM). This was originally implemented to boost the scientific return of data from IRAS approximately 20 years ago (Aumann et al. 1990; Fowler & Aumann 1994), and is still provided as an online service to users. We have now implemented MCM in a form which is suitable for use on any imaging data that are compatible with the FITS and WCS standards, and the SIP convention for distortion. The versatility of MCM is that it implicitly generates, as its very first step (or first iteration), a PRF-interpolated co-add as described in ¤7. The algorithm is as follows.
where the subscript j refers to a pixel in the upsampled output grid, and n refers to the iteration number (input parameter –n_coad). This starting image is a first guess at the ÒtruthÓ that we plan to reconstruct. Obviously this is a bad approximation, since it represents what we know without any measurements having been used yet. We could instead have used prior information as the starting model if it was available.
where rij is the response (PRF value) of pixel i at the location of output model pixel j. Eq. 14 is a tensor inner product of the model image with the flipped PRF (see below for why we need to flip the PRF). It may not be a true convolution since the kernel rij may be non-isoplanatic.
If we are after a simple PRF-interpolated co-add, we
terminate the process at step 5 (with output written to –o1_coad). In
fact, Eq. 16 is analogous to the co-addition equation (Eq. 7) in that a
starting model image with fj0 = 1 implies a correction factor Ki1 ¼ Di since a PRF volume-normalized to unity predicts Fi1 = 1 (Eq. 14). Therefore after the first (n = 1) iteration of MCM, co-add fluxes will automatically result: fj1 = fj0Cj1
= fj.
If we desire resolution enhancement, the above process is iterated, where the model image from step 5 is used to re-predict the measurements in step 2. This process of iteratively refining the model continues until the model reproduces the measurements to within the noise, i.e., the predictions from Eq. 14 are consistent with the measurements Di. If input prior uncertainties (si) are available, this convergence can be formally checked using a global c2 test that uses all the input detector pixels:
where we expect cn2 È N (the number of degrees of freedom, = the number of unmasked input pixels). If input uncertainties are provided (–unclist), the reduced chi-square, cn2/N, on a single frame basis is written to standard output following every iteration n. This is expected is converge to È1 as iterations increase, provided input uncertainties have been validated and adequately represent noise fluctuations in the input data. Alternatively, convergence can also be checked by examining the correction factors for each detector pixel (Eq. 15), where we expect Kin È 1 within the noise, or, via the averaged correction factors (Eq. 16), where Cjn ¨ 1 after many iterations. Iterating much further beyond the initial signs of convergence has the potential of introducing unnecessary (and usually unaesthetic) detail in the model. This is important to ensure a parsimonious HiRes solution.
An image of the Cjn in the internal cell-grid frame (defined in ¤7) can be generated at each iteration n if –mcmprod is specified. This product is generically named Òmosaic-cellcor.fits_iter<n>Ó and written to the directory specified by –outdir. Furthermore, the final correction-factors in the downsampled output grid (at ending iteration specified by –n_coad [n > 1]) can be written to an image specified by –o5_coad. The final HiResÕd intensity image is written to output specified by –o1_coad. For comparison/diagnostic purposes, an intensity image from the first iteration (¼PRF-interpolated co-add) in the downsampled grid can be written to output specified by –of_coad. Furthermore, if –mcmprod was set, intensity images in the internal cell-grid frame at each iteration are generated under –outdir with generic name: Òmosaic-cell.fits_iter<n>Ó.
Therefore, it is an algorithmic property of MCM that it only modifies (or de-correlates) a flat starting model image to the extent necessary to make it reproduce the measurements within the noise. A PRF-interpolated co-add (from the first MCM iteration) will generally not satisfy the measurements after it is convolved with the detector PRFs, i.e., when subject to the measurement process (Eq. 12). Figure 13 shows a schematic of the MCM process.

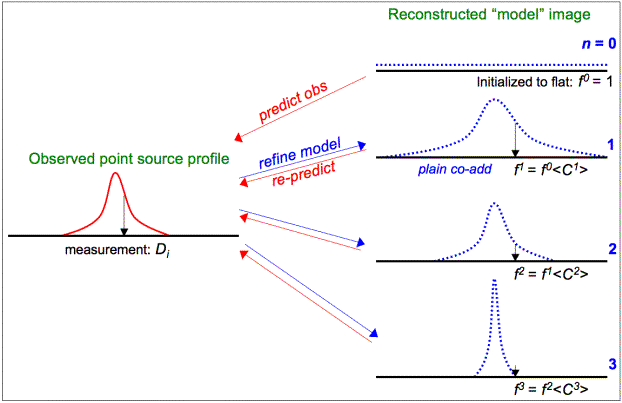

Figure 13: Cartoon showing reconstruction of a Òpoint
sourceÓ using MCM. The process consists of iteratively refining the model using
spatially dependent correction factors C (Eq. 16) such that the Òconvolved modelÓ reproduces the
measurements within the noise (equivalent to the C converging to unity).
As a detail, the input PRFs are first flipped in x and y (or equivalently rotated by 180¡) when HiResÕing is performed (n > 1). This is to conform to the usual rules of convolution and assumes the input PRFs were made by combining images of point sources observed with the same detector in the same native x-y pixel frame. For PRF-interpolated co-adds however (that terminate at n = 1), the PRFs are not flipped since a cross-covariance with the input data is instead needed. The PRFs here are used as matched filters to generate products optimized for point source detection (see ¤7).
It is also worth noting that MCM reduces to the classic Richardson-Lucy (RL) method if the following are assumed: (i) the PRF is isoplanatic so that a constant kernel allows for Fourier-based deconvolution methods to be used; (ii) the inverse-variance weighting of measurement correction factors is disabled from the PRF-weighted averaging (Eq. 16), or equivalently if all the input variances si2 are assumed equal. This implies the solution will converge to the maximum likelihood estimate for data that are Poisson distributed. With inverse-variance weighting included, the solution converges to the maximum likelihood estimate for Gaussian distributed data. This is usually always satisfied for astronomical image data in the limit of high photon counts; (iii) there is no explicit testing for global convergence at each iteration by checking, for example, that the solution reproduces the data within measurement error (Eqs 14 and 18). This criterion was indeed suggested by Lucy (1974), although it is seldom used in modern implementations of the RL method.
In the absence of prior information for the starting model, MCM implicitly gives a solution which is the ÒsmoothestÓ possible, i.e., has maximal entropy. This should be compared to maximum entropy methods (e.g., Cornwell & Evans 1985) which attempt to minimize the c2 of the differences between the data and the convolved model, with an additional constraint imposing smoothness of the solution. MCM requires no explicit smoothness constraint. MCM can indeed use a regularizing constraint in the form of non-flat starting model, (e.g., an image of the sky from another detector or wavelength), but this jettisons the idea of an image with maximally correlated pixels, and the refined model image will not be the smoothest possible. Smoothness is important because it can be used to convey fidelity in a model. In general, the solution to a deconvolution problem is not unique, especially in the presence of noise. Many models can be made to fit the data, and many methods invoke regularization techniques in order to select a plausible solution. A consequence is that some methods give more structure or detail than necessary to satisfy the data, and there is no guarantee that this structure is genuine. MCM adopts the Occam's razor approach. Given no prior constraints (apart from satisfying the input data), MCM will always converge on the simplest solution. This will be the smoothest possible.
The default prior (starting) model for AWAIC is a flat image of ones, i.e., a Òmaximally correlatedÓ image (Eq. 13). However, there is also an option to internally create an overlap area-weighted co-add from the input data (using the method described in ¤8 with no drizzling) and use it as the starting model (instead of Eq. 13). This can be invoked by specifying Ò–fp_coad 1Ó. This gives the iterations a Òhead-startÓ in reconstructing the HiRes solution since the first iteration co-add created with a flat prior (default: –fp_coad 0), i.e., the PRF-interpolated co-add, is smeared (with more power at low-frequencies) compared to an area-weighted co-add. As described above, a non-flat prior will not lead to the smoothest (and simplest) solution. Artifacts and glitches present in the non-flat prior (area-weighted co-add) may have adverse effects on the converged HiRes solution.
A powerful diagnostic from MCM is the Correction Factor Variance (CFV). This represents the variance about the PRF-weighted average correction factor (Eq. 16) at a location in the output grid for iteration n: Vjn = <Ki2>j – <Ki>j2, or
where wij = (rij/si2) / ·i rij/si2, and the detector-pixel correction factors Kin were defined in Eq. 15. At early iterations, the CFV is generally high everywhere because spatial structure has not yet been resolved, and the model contradicts the measurements when subject to the measurement process. If after convergence, all the detector-pixel measurements contributing a non-zero response at some location j agreed exactly with their predicted fluxes (Eq. 14), then all the Kin would be È 1 and the CFV (Vjn) at that location would be zero. Areas with a relatively large CFV indicate the presence of input pixel measurements which do not agree with the majority of the other measurements (e.g., outliers). It could also indicate noisy data, saturated data, regions where the PRF is not a good match (e.g., erroneously broad), or that a field has not yet converged and would benefit from further iteration. By thresholding the CFV, one can therefore create a mask for a HiRes image to assist in photometry, e.g., to avoid outliers and unreliable detections from amplified noise fluctuations (see below). An image of the CFV in the internal cell-grid frame (defined in ¤7) can be generated at each iteration n if –mcmprod is specified. This product is generically named Òmosaic-cellcfv.fits_iter<n>Ó and written to the directory specified by –outdir.
An example output from AWAIC at three iterations levels is shown in Figure 14 (this is discussed further in ¤9.6). Corresponding CFVs are shown in Figure 15. To illustrate the concept of the CFV, outlying input measurements were not masked in the left and middle images of Figure 15. These refer to iteration levels n = 1 and n = 40 respectively, with the latter corresponding to convergence. The smooth CFV image on the far right in Figure 15 was created from data with outliers detected and masked a priori using the algorithm described in ¤6. The uniformity of this CFV image indicates that the bulk of outlying measurements were indeed masked.

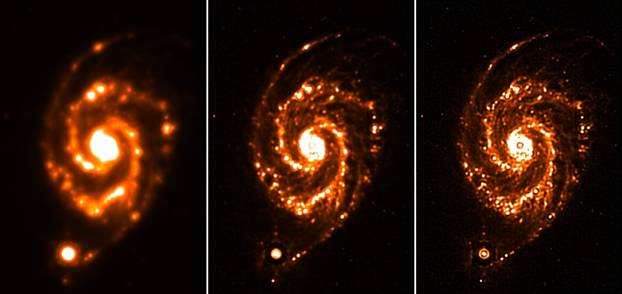

Figure 14: M51 (The Whirlpool Galaxy) from Spitzer-MIPS 24µm observations. Left: co-add (after 1 iteration); Middle: HiRes after 10 iterations; Right: HiRes after 40 iterations. Each run combined 216
frames to give a median depth-of-coverage of ~45. The fields span ~7¢
«
11¢.

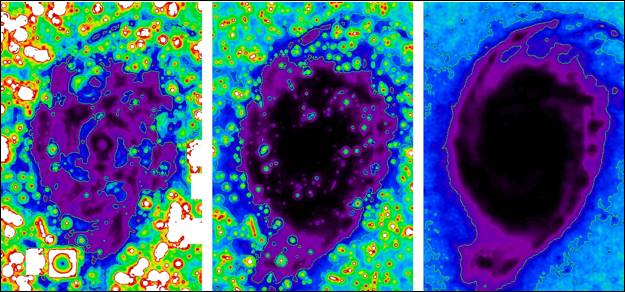

Figure 15: Correction Factor Variance (CFV) images for
M51 whose intensity images were shown in Fig. 14. For a description of the CFV,
see ¤9.2. Left: CFV after 1
iteration with outlying measurements purposefully retained; Middle: CFV after 40 iterations with outlying
measurements also purposefully retained; Right: CFV after 40 iterations but with outliers masked
(omitted) prior to HiResÕing. Darkest regions correspond to lowest values of
the CFV (Vj
<~ 0.1), and the brightest to highest values (Vj >~ 100).
Apart from providing a qualitative diagnostic, the CFV can also be used to compute a posteriori (data-derived) uncertainties in the pixel fluxes fjn in a HiRes image. These are written to the output image filename specified by –o6_coad. In general, the 1-s uncertainty at iteration n can be written in terms of the CFV as:
where Vjn is the CFV defined by Eq. 19 and the sum is over the responses from all measurements i at output pixel j, i.e., the effective depth-of-coverage. cn is a correction factor to account for re distribution of noise power across spatial frequencies from one iteration to the next. At low iterations, power is relatively high at low frequencies, i.e., the noise is correlated across pixels. As iterations increase, noise is de-correlated and power migrates to high frequencies. The spectrum approaches that of white noise, provided the input measurement noise was spectrally white. Figure 16 shows the evolution of the pixel noise distribution with iteration number n using a simulation. Gaussian white noise was assumed as input. The first iteration represents the PRF-interpolated co-add where noise is maximally correlated.

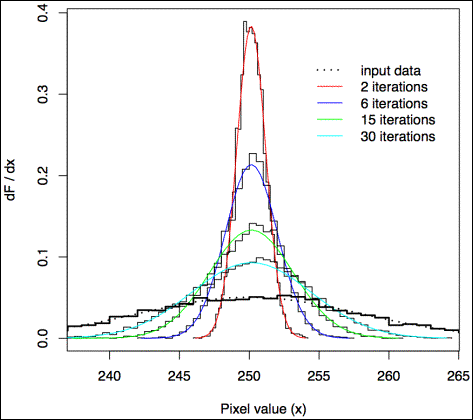

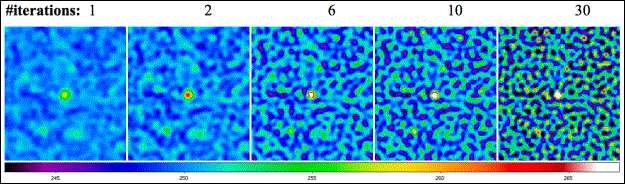

Figure 16: Above:
series of HiRes simulation images at different iteration numbers assuming as
input Gaussian white noise and single point source in the middle of the frame. Below: normalized distributions of the background noise
fluctuations at several iterations.
For n = 1 (giving a co-add), it can be shown that c1 ¼ 1/…Pj, where Pj is the effective number of noise pixels defined in ¤7. With c1 written this way, Eq. 20 becomes equivalent to the co-add pixel uncertainty defined in Eq. 8. In general, the cn at any iteration n ³1 can be approximated from the output image products as:
where sRMS is the standard-deviation (or some robust equivalent) of the pixel noise fluctuations within a Òsource-freeÓ stationary background region with Èuniform depth-of-coverage in the fjn image. The denominator is the mean (or some robust equivalent) of Eq. 20 with cn = 1 in the same region.
In AWAIC, the region for computing cn is chosen by partitioning the HiResÕd intensity image (fjn) into a grid of –siggrid « –siggrid squares (default = 8 « 8) and then selecting the region with the smallest robust spatial RMS defined by percentiles in the pixel distribution:
This estimate is used in the numerator of Eq. 21. It
minimizes biases to the local RMS from fast-varying backgrounds, high frequency
structure, and regions with high source-confusion over the footprint. If this
Òminimum RMSÓ region is still contaminated, the cn scaling factor may be overestimated (depending on
how the denominator of Eq. 21 responds), leading to overestimated HiRes
uncertainties from Eq. 20. This is not catastrophic since having uncertainties
slightly overestimated errs on the conservative side. Furthermore, if source
confusion is high everywhere, this will implicitly include confusion noise in
the HiRes uncertainties. The location of the ÒoptimalÓ region is written to
standard output during processing and therefore we recommend visually checking
the intensity image to ensure it does not contain significant structure at that
location. At the time of writing, the cn uncertainty-scaling factor is always computed and
applied for HiRes cases (–n_coad > 1). If you think itÕs grossly
wrong, then a manual rescaling of the uncertainty images (–o6_coad for
CFV-derived, or –o3_coad for prior-derived; see ¤9.3.2 for latter) will
be necessary.
The above method gives pixel uncertainties which are more or less statistically compatible with background noise fluctuations in the HiRes'd image and must be interpreted with caution. This is because the background fluctuations may not be representative of the Poisson-noise where source signal is high, e.g., if the detector with which the frames were acquired is read-noise limited, it is dangerous to assume that the scaling computed above also applies at the location of sources for the purpose of estimating photometric uncertainties. The uncertainties could be slightly underestimated where the Poisson contribution is high. This may cancel out in the end if the background uncertainties were overestimated in the first place as described above. However, if the input frames are background-photon dominated (common to mid/far IR data), the HiRes uncertainties will be appropriate for all fluxes in the HiRes'd image, including at the location of sources. This will allow one to estimate uncertainties in source photometry. Note that noise correlations are also expected to be minimal in a converged HiRes image, or negligible if products were created with ringing suppression turned on (see below).
For low depths-of-coverage, estimates of the data-derived uncertainty using the CFV (Eqs 20 and 21, output: –o6_coad) may not be accurate. Even though rescaling is still involved to satisfy local RMS spatial fluctuations, thereÕs no guarantee that uncertainties at the location of sources will be accurate enough for photometry. An alternative estimate is written to the product specified by –o3_coad. This estimate uses the first iteration prediction using priors (Eq. 8, as applies to a PRF-interpolated co-add), and then it is rescaled using the same method described in ¤9.3.1 to account for the migration of noise power with increasing iteration. This assumes prior uncertainties were provided on input (–unclist) and were validated before use. In effect, the –o3_coad output product is a Òpseudo-priorÓ uncertainty image since it uses input prior uncertainties mapped into the PRF-interpolated co-add and then rescaled to satisfy background fluctuations in the data. This product is also subject to the cautionary notes described in ¤9.3.1.
There are two flavors of SNR images computed. One computed using CFV-derived 1-s uncertainties (¤9.3.1), output: –snc_coad, and another computed using pseudo-prior uncertainties (¤9.3.2), output: –snu_coad. The –snu_coad can be generated for all iteration products n ³1 (including the first iteration PRF-interpolated co-add), while the –snc_coad is only generated for HiRes products (n > 1). In either case, the SNR for output pixel j is computed using:
where fj
is the output HiRes or co-add image signal and SVBj is an estimate of the Slowly Varying Background at
the same location. The SVB image
is computed as follows: each input frame is partitioned into a grid of
–svbgrid « –svbgrid squares (default = 5 « 5);
each square is replaced by the median of all pixels therein; the block-median
frames are then Gaussian-smoothed using a 2-D Gaussian kernel with linear
extent SZ[x or y]
= gausize*(NAXIS[1 or 2]/svbgrid)
and sigma: sx or y = gausigm*SZ[x or y] where gausize and gausigm are input
parameters: –gausize and –gausigm respectively, and NAXIS[1 or 2]
are the input frame dimensions; these SVB frames are written to the working directory specified by –outdir
and then co-added internally using PRF-interpolation (with masking if frame
masks were specified). The output SVB co-add image is named Òmosaic-int-bckgnd.fitsÓ and generated under the
–outdir directory. At the end of processing, this SVB image is used to compute the SNR images defined by Eq.
22, outputs: –snu_coad and –snc_coad for each of the s
measures described above.
As a detail during the single frame SVB computations described above, if Ò–bmatch 1Ó is also specified, a search for bright/extended structure is also performed using the –ratmax (Qd) parameter described in 4.2. If detected, the frame SVB is set to a constant equal to the minimum block-median value over all –svbgrid « –svbgrid partitions. This avoids any significant structure from biasing the underlying frame background.
The HiRes SNR images generated here will be the maximum possible since MCM would have converged to the maximum likelihood estimate for data that were Poisson or Gaussian distributed. The latter is usually always satisfied for astronomical image data in the limit of high photon counts. In particular, the SNR image for a PRF-interpolated co-add (from output –snu_coad using Ò–n_coad 1Ó) defines a linear-matched filter optimized for point-source detection (¤7.1).
Like most deconvolution methods, MCM can lead to ringing artifacts in
the model image. This limits
super-resolution, i.e., when attempting to go well beyond the diffraction limit
of an imaging system. In general, ringing occurs because the reconstruction
process tries to make the model image agree with the ÒtrueÓ scene with access
to only the low spatial frequency components comprising the data. The input
data are usually band limited, and information beyond some high spatial
frequency cutoff can never be recovered. The best we can ever reconstruct is a
Òlow-pass filteredÓ version of the truth, with the filter determined by the
maximum spatial frequency the observations provide. This includes the finite
sampling by pixels. A hard high frequency cutoff will lead to sinc-like
oscillations in real image space. The magnitude of the ringing depends on the
strength of a source relative to the local background intensity level.
It is no accident that a solution with ringing is the smoothest (and
simplest) solution possible with MCM. Anything smoother (with more low
frequency power) will not satisfy the measurements when subject to the
measurement process (Eq. 12). However, since a large number of less-smooth
solutions can reproduce the observations, those without ringing are generally
more desirable. Therefore, we relax our request for the smoothest image and use
prior knowledge that the
background and (desired) source fluxes are physically distinct and separable. There
have been numerous approaches that have used this philosophy (e.g., Lucy 1994). A flowchart of the ringing suppression
algorithm in AWAIC is shown in Figure 17. Below we expand on some of the
details. Ringing suppression is only executed as part of HiResÕing
(–n_coad > 1) if the –flxbias switch was specified. See below
for further tuning details.
1.We first generate an image of the slowly
varying background for each input frame on some specific scale using
block-median filtering over an N x N grid
(–svbgrid <N>);
2.This is then subtracted from the respective
input frames to create the ÒsourceÓ images; negative noise fluctuations are set
to zero, and a tiny positive offset added;
3.MCM is then run on the background-subtracted
images until convergence (with –n_coad <iterations>). This
operation enforces a positivity constraint for reconstruction of the source
signals. It ensures that source flux wonÕt ring against an essentially zero
background level so power can be forced into high spatial frequencies;
4.The background images are co-added and then
optionally added to the HiResÕd source-image product. This is only performed if
the –addbck switch is specified. The background intensity co-add in the
final downsampled grid
is generically named: Òmosaic-int-bckgnd.fitsÓ and written to the working
directory specified by –outdir. A background intensity co-add in the
internal cell-grid frame
(defined in ¤7) is also
generated and named Òmosaic-cell-bckgnd.fitsÓ.
5.After the background has been added to the
HiResÕd source-only product, MCM is re-executed for several iterations (or
specifically –n_coadn <iterations>) using this as the starting
model image and the original frames as input. This step re-adjusts the solution
and attempts to restore the intrinsic noise properties of the HiRes process,
i.e., what one would have obtained if no background were removed or positivity
constraint enforced. It ensures that photometric uncertainties donÕt become
biased and the final solution adequately reproduces the measurements within the
noise.
Figure 17: ringing suppression algorithm
to support HiRes
Note that ringing suppression is probably the most difficult
of all components to tune in HiRes, in particular when one has extended
structure covering a footprint. Here, the frame background estimates could be
over-estimated, resulting in a loss of flux (and information in general) when
subtracted to create the Òpure-signalÓ, positively-constrained frames. The lost
information will not participate in HiResÕing, although it is (optionally)
added back to the final HiResÕd image. This ensures flux is conserved. The goal
then is to minimize SVB estimates from being contaminated from extended (and
interesting) structure. This can be done by choosing a –svbgrid size such
that >~50% of the pixels in each partition capture the background signal (or
uninteresting parts in the frames). Some contamination is inevitable,
especially for partitions which fall on top of extended structures or objects
covering most of a frameÕs FOV. Therefore it is advised that the SVB intensity
co-add (generically named –outdir/Òmosaic-int-bckgnd.fitsÓ) be examined
to assess whether the partition grid size needs to be made larger
(–svbgrid value smaller) or smaller (–svbgrid value larger). An
example where it may need to be smaller is if one is interested in capturing
the background on smaller scales so ringing can be mitigated around sources
superimposed on uninteresting Òfast-varyingÓ backgrounds or structures. One can
also examine the individual SVB frames corresponding to each input frame under
–outdir. These have suffix: Ò_svb.fitsÓ.
If tweaking –svbgrid doesnÕt help, there is one more
functionality that can rescue the day. Along with the –flxbias switch
(that triggers ringing suppression in the first place), it is recommended that
the –bmatch (background matching) switch also be specified. This will
assist in the explicit detection of extended structure over each frame (see
¤4.2) using the –ratmax threshold. If detected, it allows the frame
background to default to a constant equal to the minimum median value over all –svbgrid «
–svbgrid partitions of a frame (as opposed to a block-median filtered
SVB). The goal here is to select the partition Òmost representativeÓ of the
underlying background. Depending on your extended structure or object, this may
require decreasing the –ratmax threshold so that detection is triggered
for your input frames (i.e., for a majority of them if you like). For
super-extended structures that cover most of your input frames (or even a
single frame), you may need to reduce the partition grid size (larger –svbgrid
value) to try and tease out those Òminimum backgroundÓ regions.
A consequence of HiResÕing is that noise-spikes at high
spatial frequencies can be amplified with increasing iteration. The standard
MCM algorithm does not distinguish between noise, residual outliers, and
real-source information. All components are reconstructed by the deconvolution
process, but not necessarily at the same rate. ÒFitting of the noiseÓ is a
feature of RL-like algorithms since noise is usually present at frequencies
exceeding the maximum (band-limit) of the input PRF. If a HiRes solution is to
satisfy the input data on convolution with the PRF at all locations and scales,
high frequency noise must persist in the HiRes image, usually with greater
amplitude. One can reduce noise in the output by having a high
depth-of-coverage of input frames, but high enough depths may not always be
available. It is expected that the largest noise-spikes are outliers in the
data and can be detected and masked by the outlier algorithm (¤6) during
preprocessing. This depends on the assumed outlier thresholds of course. If one
is not after a science quality product (i.e., in the quantitative sense with
data-compatible uncertainties), one can live dangerously and drive the outlier
detection thresholds (–tl_odet and –tu_odet) really low and attempt
to mask spikes well into the noise. For reliable detection, this requires a
moderately high depth-of-coverage (>~15) in the first place. Again, we donÕt
advise attempting this unless the algorithm below cannot be tuned for your
data.
The noise suppression algorithm in AWAIC is still very
experimental so please proceed with caution. It has been tested on the M51 case
shown in Figure 14 and gives reasonable results. This makes use of the CFV
diagnostic described in ¤9.2, in particular its change from one iteration (n) to the next (n + 1): DCFV. In regions
of the output footprint devoid of sources and structure, and dominated by
high-frequency noise, the CFV is seen to drop at a faster rate with increasing
iteration than in regions with unresolved structure that require more iterations for convergence. A CFV which
exhibits little change from one iteration to the next (within the noise) is an
indication of convergence. Therefore, the rate of convergence for MCM is
position dependent. One can use the DCFV diagnostic by not HiResÕing the Ònoisy/voidÓ regions
to the same ending iteration number (–n_coad [> 1]) desired to resolve
the interesting structure.
In summary, the HiResÕing for output pixel j is terminated at iteration n if the absolute %-change in the CFV satisfies:
where thres is
specified by the input parameter –h_coad with default=0 implying this
processing is not activated, there is no noise suppression, and all regions are
HiResÕd to the same number of iterations (–n_coad). Iterations are
terminated internally by forcing the averaged correction factor Cjn to 1 (Eq. 16 in ¤9.1) for pixel j, implying no further resolution enhancement for this
pixel. The HiRes flux fjn is frozen at iteration n and other regions may continue to be HiResÕd until
Eq. 22 is satisfied, or the ending iteration specified by –n_coad is
reached, whichever is earlier. If –h_coad > 0 [in %] is specified,
output filenames for products –o5_coad, –o6_coad must also be
specified. A related ancillary output product is an image of the ending
iteration number
(–oi_coad), showing where the HiResÕing has terminated according
to Eq. 23. This product can be used with the HiResÕd image (–o1_coad) to
tune the threshold parameter –h_coad. The individual CFV images at each
iteration (generated with –mcmprod) could also be useful (see ¤9.2). A
further benefit of the noise suppression algorithm is that by focusing on those
regions where resolution enhancement to maximal iteration is needed (which
could comprise a small fraction of the footprint), one could reduce the overall
run-time. In practice however, it is recommended that small footprints
containing just the structure of
interest be HiResÕd to high iteration, so noise suppression may not be useful
in the end.
Like most deconvolution methods, MCM does not alter the information content of the input image data. The signal and noise at a given frequency are scaled approximately together, keeping the SNR fixed. The process just re-emphasizes different parts of the frequency spectrum to make images more amenable to a certain kind of examination, e.g., for detecting previously unresolved objects and thereby increasing the completeness of surveys.
For optimal HiResÕing, the input data will have to adequately sample the instrumental PSF to at least better than the Nyquist sampling frequency 2nc, where nc is the maximum frequency cutoff inherent in the PSF. For a simple diffraction-limited system with aperture diameter D, nc µ D/l and corresponds to the full width at half maximum (FWHM) of an Airy beam. Even if the detector pixels undersample the PSF (below Nyquist), redundant coverage with N randomly dithered frames can help recover the high spatial frequencies, since the average sampling will scale as È 1/…N of an input pixel. The better the sampling, the better the HiRes algorithm is at improving spatial resolution. For imaging data from the Spitzer IRAC and MIPS detectors with typically SNR >~ 5/pixel and 10 frame overlaps, our HiRes algorithm reduces the FWHM of the effective PRF to È 0.35l/D - a factor of almost 3 below the diffraction limit. This corresponds to almost an order of magnitude increase in flux per solid angle for a Gaussian profile. This enhancement assumes accurate knowledge of the PRF over the focal plane.
Example output from framecoadder at three MCM iteration levels was shown in Figure 14. At high iterations, point source ringing starts to appear. The ringing around the satellite dwarf galaxy at the bottom is aggravated because the core is saturated in the data, and the PRF used for HiResÕing (which is derived from unsaturated data) is not a good match. ÒFlatÓ core profiles in the data, due to either saturation or improperly corrected non-linearity, will contain relatively more power in the side-lobes than the actual PRF. When this PRF is used for HiRes'ing, these side-lobes will manifest as ringing artifacts in the HiRes image in order for it to reproduce the observations on convolution with the PRF. Even though the ringing suppression algorithm was turned on in this example, ringing is still seen around other point sources. This is because these sources are superimposed on the extended structure of the galaxy. This structure acts like an elevated background against which point sources can ring. The ringing suppression algorithm relies on accurate estimation of the local background, and this can be difficult when complex structure is involved, as it is here.
Due to the unreliability of temporal (stack) outlier
detection at low depths-of-coverage and its complete absence for depths £ 4
(or more precisely £ value specified by –ns_odet), the wframecoadder script has an option to replace pixels in coadd
products with NaNs where the depth is less than some threshold (parameter:
–cmin_coad; default = 4). This is only performed if Ò–crep_coad 1Ó
is specified. At the time of writing, no low-depth pixel replacement is performed
(i.e., Ò–crep_coad 0Ó). If performed, only the intensity and uncertainty
co-add products have their pixels replaced by NaNs.
Quality Assurance
metrics are only generated if the –qa switch is specified. Below we list
the output metrics for each product: intensity co-add (int); depth-of-coverage map (cov); co-add uncertainty (unc), as well as ensemble metrics for the input
intensity frames (frm)
and masks (msk). These
are written to an output meta-data table in IPAC format (–qameta) under
directory: –archdir. Below we only show the metric name and definition
columns of this table. Descriptions of some of the metrics and their purpose
are given below.
Metrics are computed for the overall footprint as well as over squares defined by an N « N grid where N is an input parameter (–qagrid <N>; default N = 3). This is to facilitate an analysis of the variation in metrics over the co-add footprint. It also provides ÒindependentÓ sample sets from which to gauge the reliability of a metric (e.g., if a particular grid square happens to contain an extended source, the background-noise estimate therein will be biased).
The various sigma (data-scale) measures shown below are not
redundant. It is prudent to measure some of the important metrics using
different methods since a specific algorithm may not be robust against
unforeseen glitches and irregular behavior in the data. Each sample metric is
also subject to uncertainty and bias and it's important not to be mislead by
any one of them.
\ QA metadata
for co-add image products
\
Generated by framecoadder, v.4.2 on 2010-04-13 at 13:02:28
\
Definitions of metric identifiers:
\ int:
co-add intensity values
\ cov:
depth-of-coverage map values
\ unc:
co-add uncertainty values
\ msk:
statistics on frame-pixels omitted, including temporal outliers
\ frm:
input frame-stack ensemble statistics
\ Metric
units (excluding enumerates) are in intensity co-add units
\ Names
appended with _xy refer to value for partition x,y in co-add footprint: e.g.
for 3 x 3
grid: _11 => square at lower left corner; _33 => square
at upper right
\ FITS
file products represented:
\ 1:
wise/outputs_coad1/mosaic-int.fits
\ 2:
wise/outputs_coad1/mosaic-cov.fits
\ 3:
wise/outputs_coad1/mosaic-unc.fits
\
|name
|comment
\
\ Global
co-add metrics
\
coad:int:numframes
Number of input frames overlapping with co-add footprint
coad:int:NumNaN Number
of NaN pixels over whole intensity co-add
coad:unc:NumNaN Number
of NaN pixels over whole uncertainty co-add
coad:int:Min Minimum
pixel value over whole intensity co-add
coad:int:Max
Maximum pixel value over whole intensity co-add
coad:int:Mean
Mean pixel value over whole intensity co-add
coad:int:Median Median
pixel value over whole intensity co-add
coad:int:StdDev
Standard (RMS) Deviation from mean (unbiased estimate) over co-add
coad:cov:Min
Minimum pixel value over whole coverage co-add
coad:cov:Max
Maximum pixel value over whole coverage co-add
coad:cov:Mean
Mean pixel value over whole coverage co-add
coad:cov:Median Median
pixel value over whole coverage co-add
coad:cov:FivePtile
5%-tile value over whole coverage co-add
coad:cov:NineFivePtile 95%-tile value over whole
coverage co-add
\
\ Co-add
metrics for square partition 1, 1
\
coad:int:Min_11 Minimum pixel value
coad:int:Max_11
Maximum pixel value
coad:int:Mean_11 Mean pixel
value
coad:int:Median_11
Median pixel value
coad:int:Mode_11 Mode pixel
value (fuzzy)
coad:int:StdDev_11
Standard (RMS) Deviation from mean (unbiased population estimate)
coad:cov:Min_11
Minimum pixel value
coad:cov:Max_11
Maximum pixel value
coad:cov:Mean_11 Mean pixel
value
coad:cov:Median_11 Median
pixel value
coad:cov:FivePtile_11 5%-tile value
coad:cov:NineFivePtile_11 95%-tile
value
coad:unc:Min_11
Minimum pixel value
coad:unc:Max_11
Maximum pixel value
coad:unc:Mean_11 Mean pixel
value
coad:unc:Median_11
Median pixel value
coad:int:NumAtMedCov_11 Number of pixels with Median
Coverage
coad:int:SigLTMADMED_11 Sigma from Low-Tail Median
Absolute Deviation from Median *at Med Cov*
coad:int:SigLTStdMod_11 Sigma from Trimmed Low-Tail
standard deviation from mode *at Med Cov*
coad:int:Med16ptile_11 Sigma from Median -
16%-tile *at Median Coverage*
coad:int:84-16ptile_11 Sigma from [84%-tile -
16%-tile]/2 *at Median Coverage*
coad:unc:MdAtMedCov_11 Median pixel uncertainty
*at Median Coverage*
coad:unc:LTMADMED_Unc_11 Ratio:
SigLTMADMED_11/MdAtMedCov_11(pseudo Chi2) *at Median Coverage*
coad:unc:Md16ptile_Unc_11 Ratio:
Med16ptile_11/MdAtMedCov_11 (pseudo Chi2) *at Median Coverage*
coad:unc:LTStdMod_Unc_11 Ratio:
SigLTStdMod_11/MdAtMedCov_11(pseudo Chi2) *at Median Coverage*
...Continued for remaining (N x N)
– 1 square partitions over footprint.
\
\
Statistics on frame-pixels omitted over all input frames
\
coad:msk:MinFlag Minimum
number of pixels flagged per frame
coad:msk:MaxFlag Maximum
number of pixels flagged per frame
coad:msk:MeanFlag
Mean number of pixels flagged per frame
coad:msk:MedFlag Median
number of pixels flagged per frame
coad:msk:MinOutlier Minimum
number of temporal outliers per frame
coad:msk:MaxOutlier Maximum
number of temporal outliers per frame
coad:msk:MeanOutlier Mean number of
temporal outliers per frame
coad:msk:MedOutlier Median
number of temporal outliers per frame
\
\
Statistics in frame median backgrounds (bef/aft bckgnd matching) over all input
frames
\
coad:frm:MinFrmMedB Minimum
frame median (before bckgnd matching)
coad:frm:MaxFrmMedB Maximum
frame median (before bckgnd matching)
coad:frm:MedFrmMedB Median of
all frame medians (before bckgnd matching)
coad:frm:StdFrmMedB Std-dev
in frame medians from mean (before bckgnd matching)
coad:frm:MinFrmMedA Minimum
frame median (after bckgnd matching)
coad:frm:MaxFrmMedA Maximum
frame median (after bckgnd matching)
coad:frm:MedFrmMedA Median of
all frame medians (after bckgnd matching)
coad:frm:StdFrmMedA Std-dev
in frame medians from mean (after bckgnd matching)
Below are
descriptions of the not-so-obvious metrics and their purpose. The suffix Ò_xyÓ means the metric is used for partition x,y in the N x N grid of the co-add footprint (see above).
coad:int:Mode_xy
This metric represents an estimate of the most frequently occurring
pixel value. It represents a ÒfuzzyÓ measure since it is based on an
approximate binning method that requires an appreciable sample size, i.e., >~ 500 pixels. We advise this metric
be used with caution since it will be highly inaccurate for small samples. In
brief, the method first partitions the histogram of all image pixel values into
10 equal area bins (or Ò10%-tilesÓ); it then takes the bin with the smallest
width as the one most probable to contain the mode since this bin is located
near the peak of the histogram; the median of the data in this bin is then used
as an estimate of the mode.
coad:int:NumAtMedCov_xy
This represents the number of pixels in the
depth-of-coverage map with values between mcov ± 0.25, where mcov = median depth-of-coverage. The eight metrics
following this in the meta-data table only use intensity and uncertainty co-add
values corresponding to pixels within this depth-of-coverage range.
coad:int:SigLTMADMED_xy
This is an estimate of sigma using the Median Absolute
Deviation (MAD) from the median using
only pixel values in the lower tail.
It is rescaled for consistency with the standard deviation of a normal
distribution in the large sample limit. This measure is more robust against
outliers (including sources) in the upper-tail than the sigma estimated from
the sample standard deviation. Therefore it can be used to estimate the
background RMS, assuming the background level is stationary. We should mention
that this measure can exhibit more
variation (less efficiency) than the standard-deviation on average. This
metric is defined as:
where pi =
the set of pixel values < sample median, pj = all pixel values in original sample.
coad:int:SigLTStdMod_xy
This is another robust measure of sigma that uses the mode
measure above as an estimate of the first moment. It is defined as the
standard-deviation of the lower-tail pixel values from the sample mode after
trimming possible low-tail outliers at < 5sMAD. In other words
where pi =
the set of pixel values in the range: mode – 5sMAD
£
pi £ mode; pj = all pixels in the original sample; and sMAD was defined above.
coad:int:Med16ptile_xy & coad:int:84-16ptile_xy
These represent robust estimates of sigma using the sample
quantile differences: ÆQL = q0.5 – q0.16 and ÆQR = 0.5(q0.84
– q0.16)
respectively. For normally distributed data, these should approximately equal
the standard deviation (s). When there is severe
source contamination or bright extended structure (which affects predominately
the high tail), we expect ÆQR
> ÆQL.
coad:unc:LTMADMED_Unc_xy &
coad:unc:Md16ptile_Unc_xy &
coad:unc:LTStdMod_Unc_xy
These represent the respective ratios:
where the metrics in the numerator were defined above. The
denominators contain the median uncertainty of pixels corresponding to the
median depth-of-coverage (see discussion under coad:int:NumAtMedCov_xy above). These ratios can be
interpreted as pseudo-c2 measures that
quantify in a broad sense, the statistical compatibility of uncertainty
estimates with the distribution of co-add intensity values. In other words,
whether the pixel uncertainties are compatible with the overall RMS fluctuation
about the background in a co-add. If so, then these ratios should be È1.
Even though robust sigma estimates are used, itÕs important to note that high
source confusion, bright extended structure, and/or a strongly varying
background can make these ratios significantly deviate from 1.
coad:frm:StdFrmMedB & coad:frm:StdFrmMedA
These are the two most important metrics under the
ÒStatistics in frame median backgroundsÉÓ section of the meta-data table. They
correspond to respectively the standard deviation over all the global medians
of the input frames, before and after background-level matching. The before and after
measures are used to assess the quality of background matching in a relative
sense. The standard deviation (which quantifies the degree of scatter) is
expected to be smaller after background matching. If it is not, it indicates
that very little correction to the levels in the original frames was needed,
or, that the presence of bright extended structure amongst frames is biasing
background levels and affecting the robustness of the background-matching
algorithm.
Five diagnostic plots are generated as part of the QA step.
These are in SVG format and written to the directory specified by –qadir.
The generic names are as follows:
á <-o1_coad>hist.svg : histogram of the co-add
intensity pixel values.
á <-o2_coad>hist.svg : histogram of the
depth-of-coverage pixel values.
á <-o1_coad>OutlierHist.svg : histogram of the number of
temporal outliers (from AWOD) detected per frame. Only generated if the
–odet switch is specified.
á <-o1_coad>FlaggedHist.svg : Histogram of total number of
pixels flagged (omitted from co-add) per frame as specified by the
Ò–m_coadÓ masking bitstring. Only generated if the –odet switch is
specified.
á <-o3_coad>VsCoverage.svg : Scatter-plot of 1-sigma
uncertainty in co-add pixel flux versus depth-of-coverage for a random sample
of 5000 pixels selected over the co-add footprint. Only generated if an
uncertainty product exists (was made) and the total number of pixels over
footprint exceeds 5000. This plot can be used to explore the scaling of
uncertainty with depth-of-coverage, e.g., does it follow 1/…N
statistics? If so, the points should lie on a line of slope ~ -0.5 since this
is a log-log plot.
