Windowed Calibrations/Detector Trending
Level-0 frames spanning 2 to 4 day windows from Dec 13, 2013 are used to
construct time-dependent pixel-calibration products. About 6000 to 8000
framesets per window satisfying |b| > 15°, SAAdist > 5°, and MOONsep > 35°
are combined to make various calibration products (see below).
NOTE: L1b (processed frame) performance trending can be found here.
* Cal-image montages (same stretch, labelled with dates and scan ranges)
Relative responsivity maps (using the background-gradient method):
Pixel range shown is ~ 0.97 to 1.3.
FlatMeth1W1_montage.pdf
FlatMeth1W2_montage.pdf
Fractional delta-flats relative to first time interval, i.e. (t - t0)/t0:
Pixel range shown is ~ -0.03 to 0.03.
DeltaFlatMeth1W1_montage.pdf
DeltaFlatMeth1W2_montage.pdf
Relative dark/bias maps (trimmed stack-average of "L0 - med{L0}" images):
Pixel range shown is ~ -10 to 500 DN.
DarkBiasW1_montage.pdf
DarkBiasW2_montage.pdf
Fractional delta-darks relative to first time interval, i.e. (t - t0)/t0:
Pixel range shown is ~ -0.2 to 0.2.
DeltaDarkBiasW1_montage.pdf
DeltaDarkBiasW2_montage.pdf
Standard-deviation stack maps (trimmed stack-RMS of "L0 - med{L0}" images):
Pixel range shown is ~ 2 to 6 DN.
StdDevW1_montage.pdf
StdDevW2_montage.pdf
Fractional delta-StdDevs relative to first time interval, i.e. (t - t0)/t0:
Pixel range shown is ~ -0.03 to 0.03.
DeltaStdDevW1_montage.pdf
DeltaStdDevW2_montage.pdf
NOTE: the following histograms are not updated on a regular basis.
* Relative responsivity map histograms
FlathistosW1.pdf
FlathistosW2.pdf
* Relative dark/bias histograms and zoom-in on tails
DarkhistosW1_peak.pdf
DarkhistosW2_peak.pdf
DarkhistosW1.pdf
DarkhistosW2.pdf
* StdDev-stack histograms and zoom-in on tails
StdDevhistosW1_peak.pdf
StdDevhistosW2_peak.pdf
StdDevhistosW1.pdf
StdDevhistosW2.pdf
StdDevhistosW1_peak w/ 12/5/13 "firstlight" scan
StdDevhistosW2_peak w/ 12/5/13 "firstlight" scan
* Histograms of difference between StdDev-stack map used to flag noisy pixels
in long-term static pixel mask and subsequent StdDev-stack maps
rmsdiffhistosW1.pdf
rmsdiffhistosW2.pdf
Related plots showing same StdDev-stack differences vs dark signal map
for each pixel
rmsdiff_darksignalW1n.pdf
rmsdiff_darksignalW2n.pdf
Related plots showing actual StdDev-stack map pixel values vs dark signal
map pixel values for subsequent windows. Horizontal dotted lines mark
25 DN -- the threshold used to create the pipeline static masks
stddev_darksignalW1n.pdf
stddev_darksignalW2n.pdf
L0 frame metrics from YEAR 1: 12/13/13 - 12/13/14
NOTE: the following (yearly-based) plots are not updated on a regular basis.

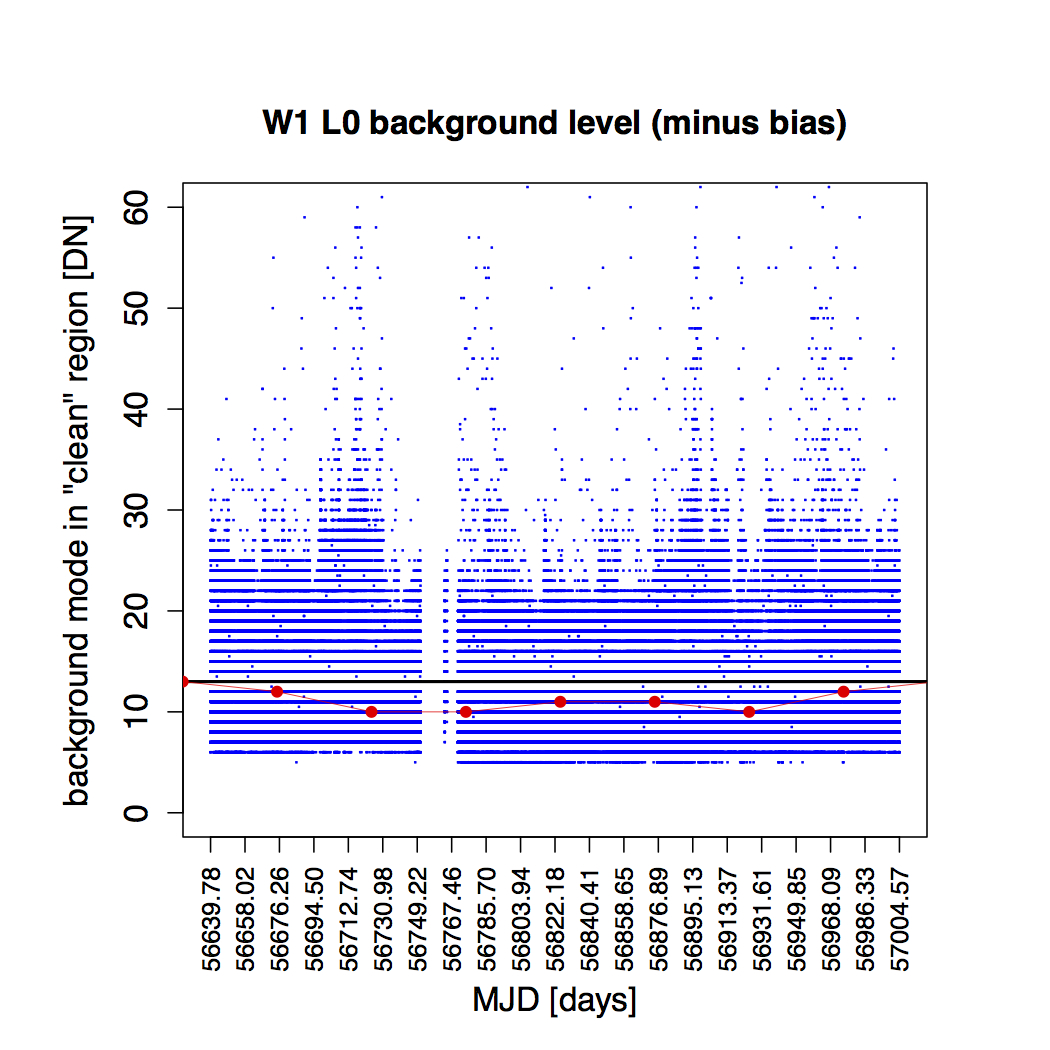

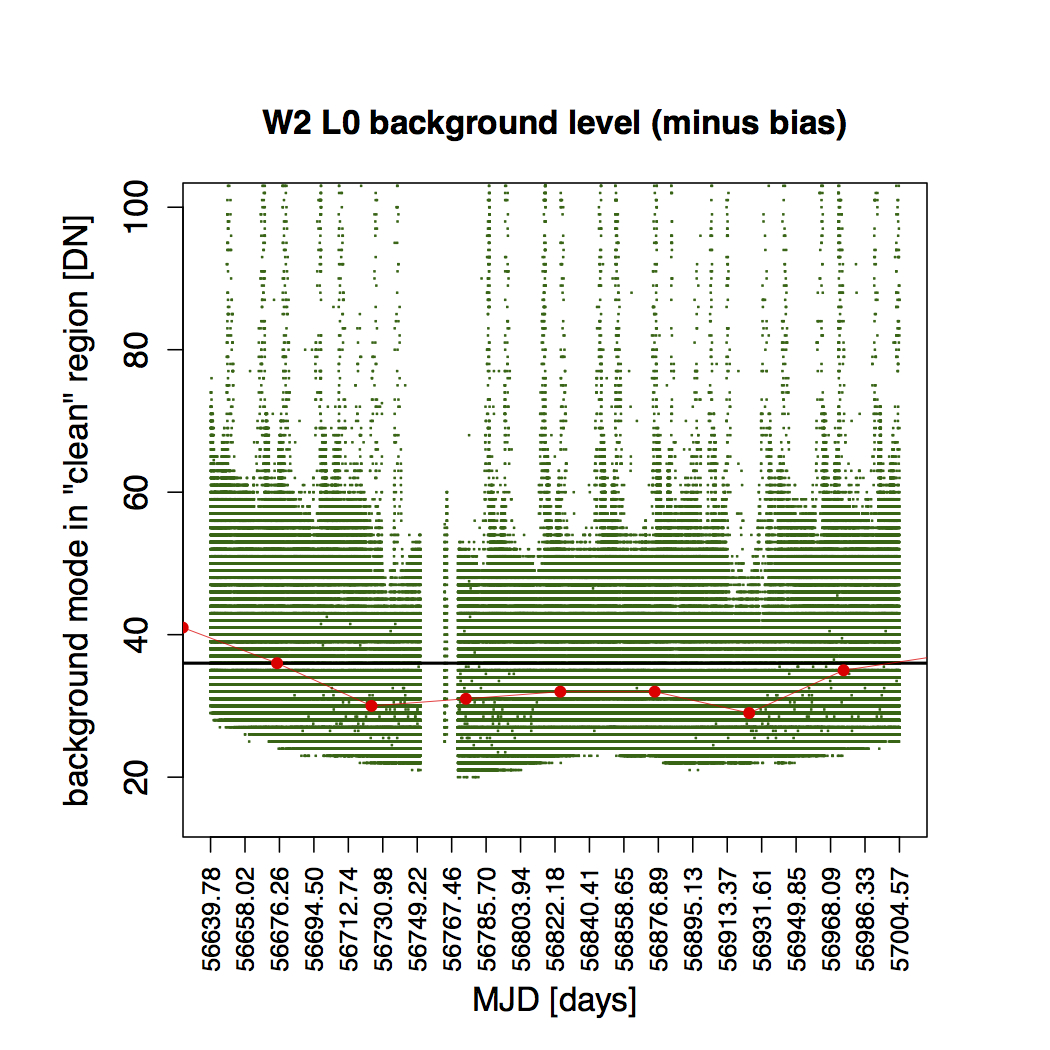

* L0 backgrounds (with 128 DN bias level removed) vs MJD. These are mode values
within "clean" regions on each array. The horizontal lines are medians from
the end of original post-cryo and the red dots are binned medians.

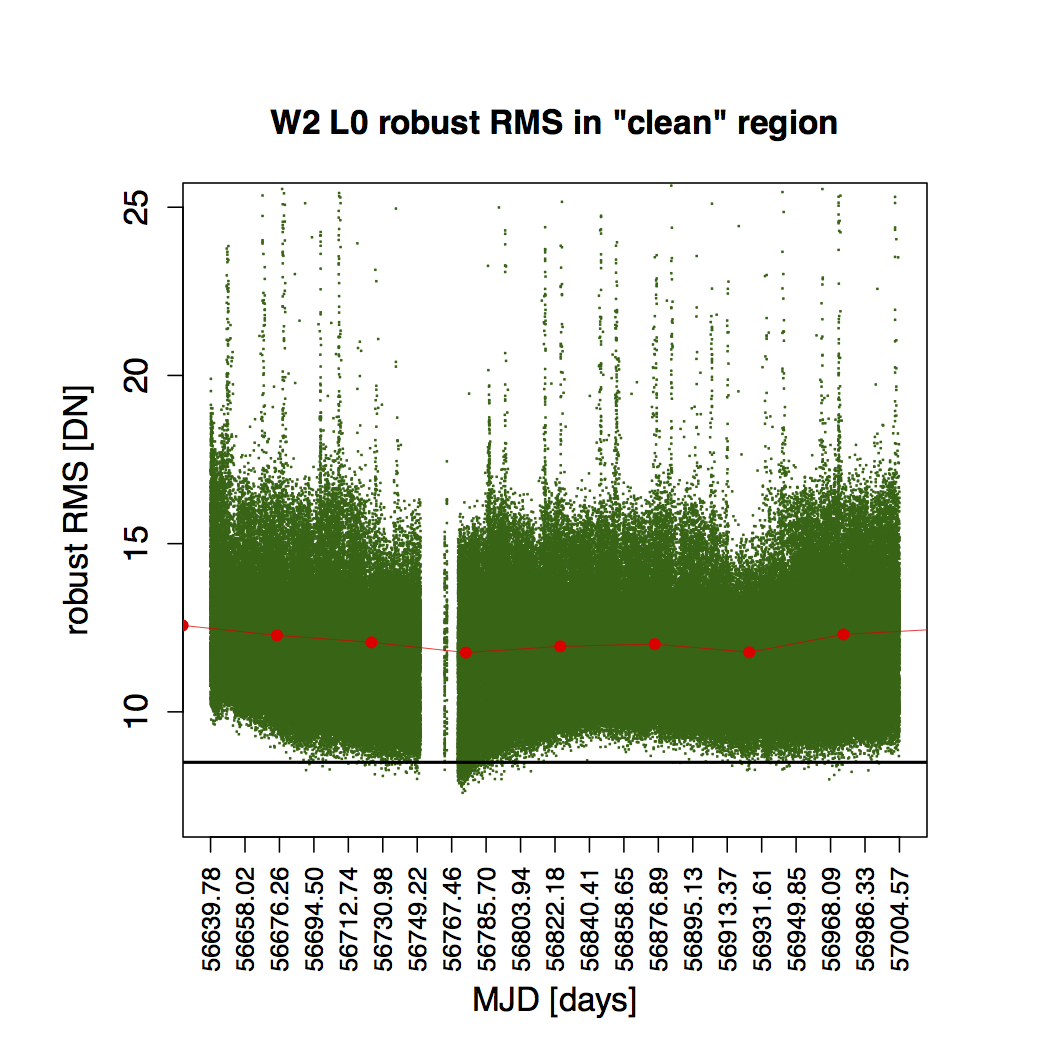

* L0 robust pixel-RMS values vs MJD. These are computed within "clean" regions
on each array. The horizontal lines are medians from the end of original
post-cryo and the red dots are binned medians.

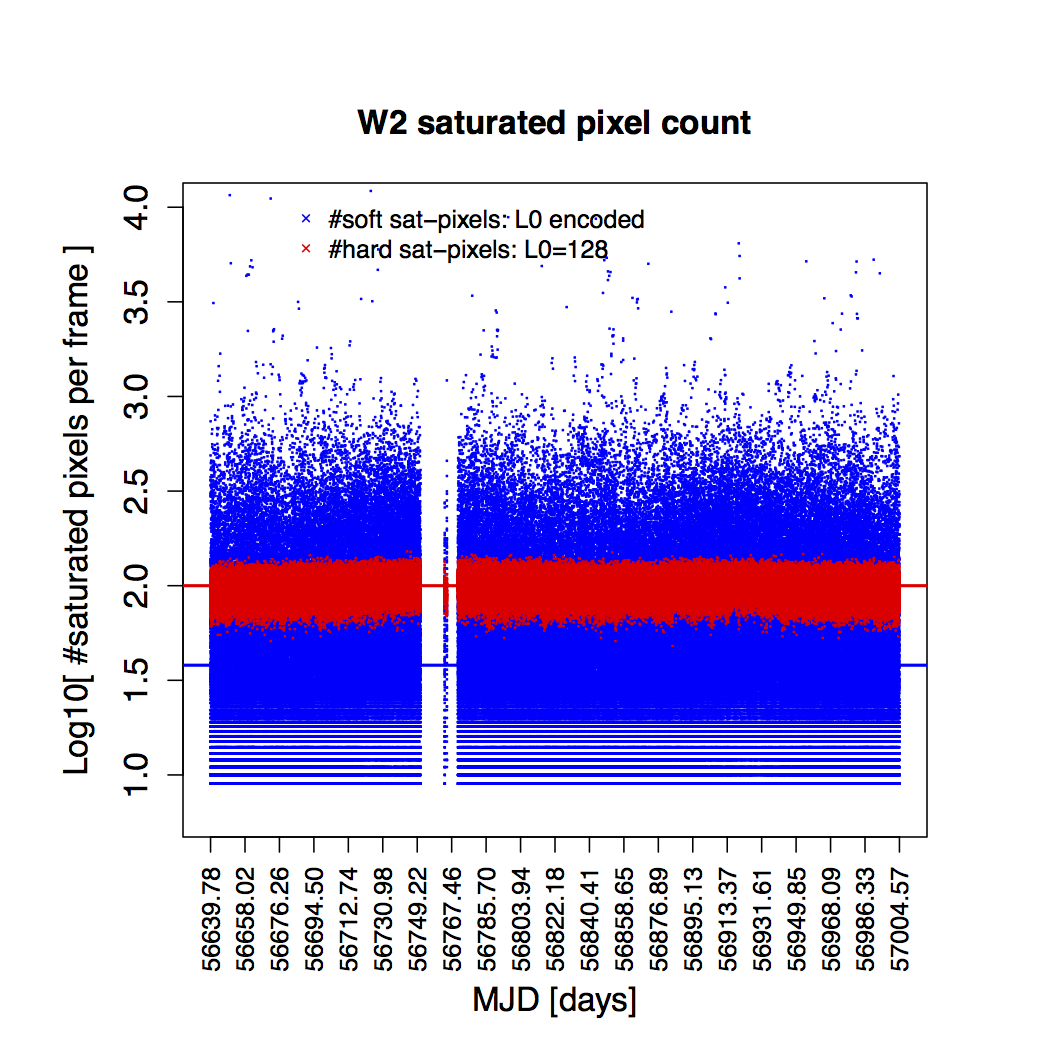

* The number of hard/soft saturated pixels in L0 frames inferred from the DEB
encoding vs MJD. The horizontal lines are medians from the end of original
post-cryo.
* L0 backgrounds (with 128 DN bias level removed) vs MJD. These are mode values
within "clean" regions on each array. The horizontal lines are medians from
the end of original post-cryo, the red dots are binned medians and the
vertical dashed line is at the start of the survey-parameter change
(~noon 01/08/2015 UT).
bck_vs_mjdW1.pdf
bck_vs_mjdW2.pdf
* L0 RMS vs MJD. These are robust pixel-sigma values (from a trimmed low-tail
StdDev from the pixel mode) within "clean" regions on each array. The
horizontal lines are medians from the end of original post-cryo and the
red dots are binned medians.
rms_vs_mjdW1.pdf
rms_vs_mjdW2.pdf
* The number of hard/soft saturated pixels in L0 frames inferred from the DEB
encoding vs MJD. The horizontal lines are medians from the end of original
post-cryo.
sat_vs_mjdW1.pdf
sat_vs_mjdW2.pdf
* The number of hard/soft saturated pixels in L0 frames inferred from the DEB
encoding vs L0 background level (in "clean" regions).
sat_vs_bckW1.pdf
sat_vs_bckW2.pdf
* Hot (high-dark) and noisy pixel trends using the above relative dark and
StdDev-stack map histograms. Thresholds: "hot > 20 DN" in L0 trimmed stack
average and "noise > 30 DN" in trimmed stack-StdDev. NOTE: these thresholds
are not those used to create masks for production. The noisy pixel fractions
are closer to what one would mask (i.e., declared "unusable" for all time).
A large fraction of the hot (high-dark) pixels subtract-out nicely using
either the time-dependent relative dark maps above, or the dynamic
sky-offset calibrations. The hot pixel trends are normalized to the
number of hot pixels in original post-cryo (at Feb. 1, 2011): 132,930
for W1 and 174,976 for W2.
hotpixtrend.pdf
noisypixtrend.pdf
hotpixtemp.pdf
noisypixtemp.pdf
F. Masci, 01/27/2016
